OVERVIEW
The 8th generation (C8) of the Chevrolet Corvette is an engineering marvel; designed to be a World-Class American Sportscar with exceptional power and handling. However, the Corvette engineers left some room for aerodynamic enhancement that lowers lap times and increases driver confidence. One such key area was the rather overengineered brake cooling ducts. When the C8 is upgraded to bigger brakes with extra thermal capacity, these ducts may be excessive and not needed for optimal performance.
The Verus Engineering Brake Duct Block-Off Kit was developed to improve the aero balance of the Corvette Stingray. By blocking off the factory brake ducts, the C8 Front Bumper holds a higher concentration of high-pressure air at the front of the bumper around the duct area, and low-pressure air at the leading edge of the nose and underneath the splitter. On a vehicle equipped with our Ventus 3 Package, this simple and effective modification increased total downforce by 4% and reduced total drag by 0.8%, increasing front balance by 5%!
Installation is simple and completely reversible. As a reminder, the block-offs serve as an aerodynamic balancing tuning device and should only be used when you are confident in your braking performance. Proceed with caution when removing cooling capacity!
WHAT IS INCLUDED

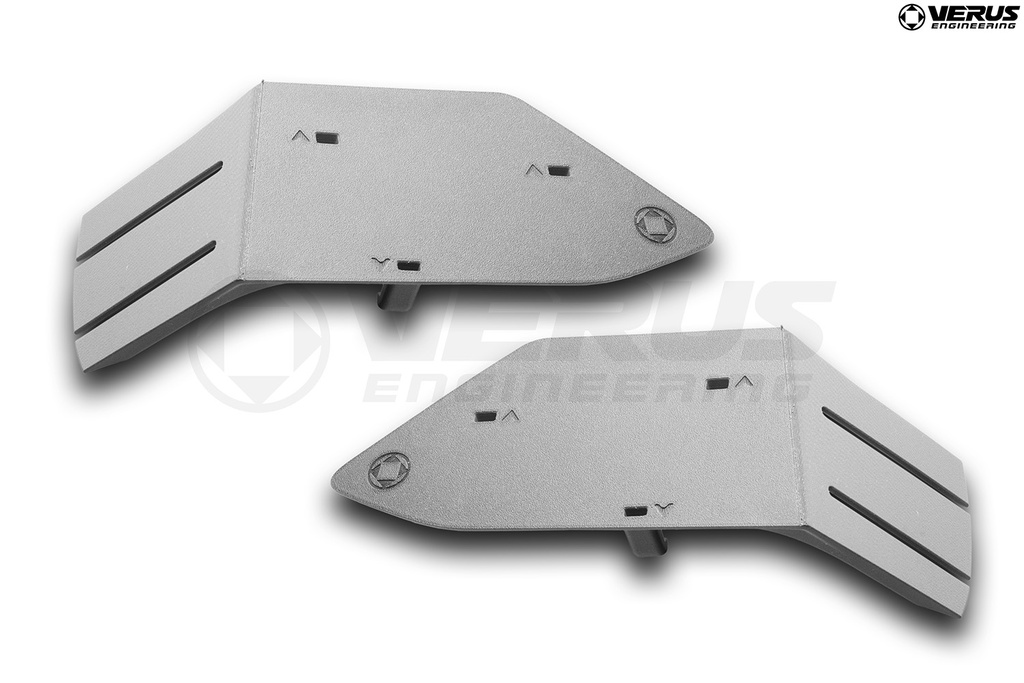

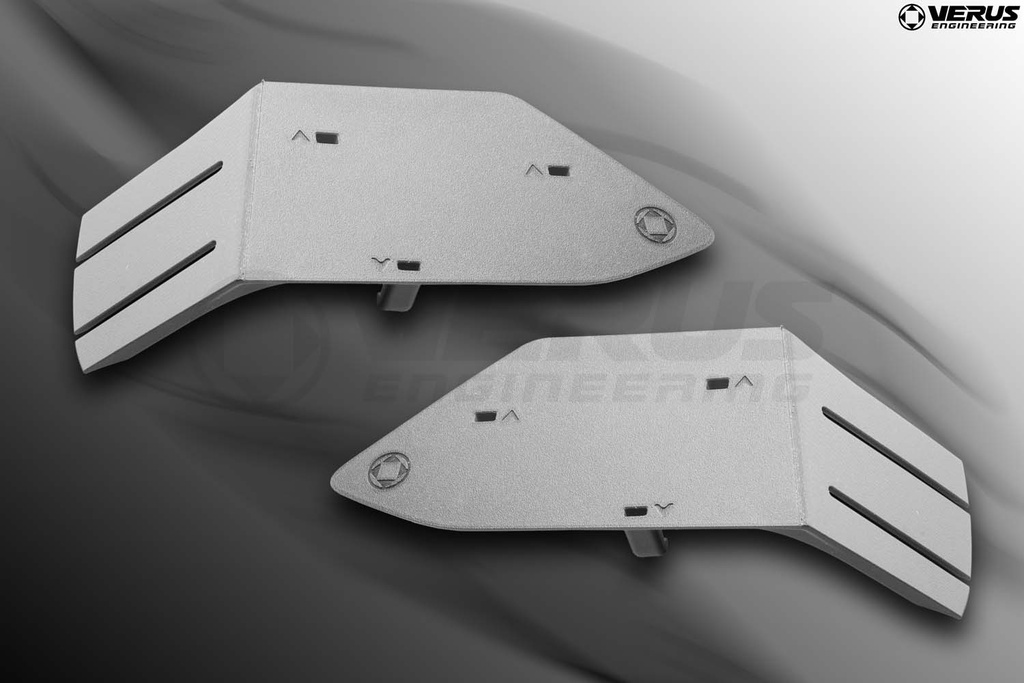

- (1) Brake Duct Block-Off Plate (Driver Side)
- (1) Brake Duct Block-Off Plate (Passenger Side)
Features:
- Improves Aero Balance by Blocking Off Unnecessary Brake Cooling Ducts
- Improved Efficiency (L/D)
- Increased Downforce and Reduced Drag

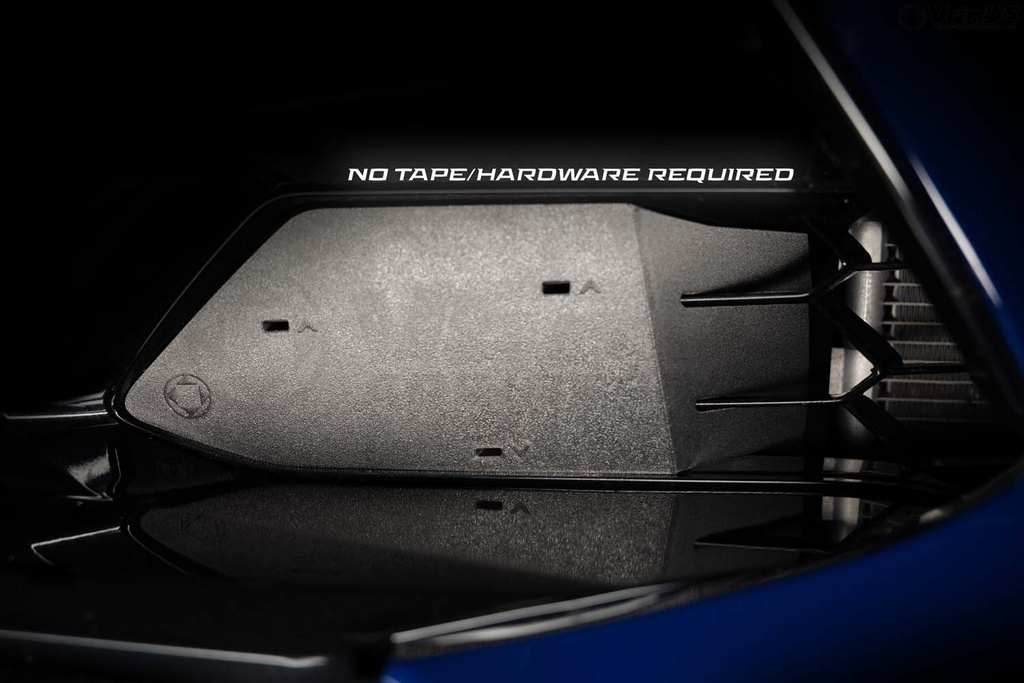

- Clips Into the Factory Brake Cooling Ducts
- Capable of Increasing Front Aero Balance by 5% on Ventus 3 Packaged Vehicles
Features:
- Improves Aero Balance by Blocking Off Unnecessary Brake Cooling Ducts
- Improved Efficiency (L/D)
- Increased Downforce and Reduced Drag
- Clips Into the Factory Brake Cooling Ducts
- Capable of Increasing Front Aero Balance by 5% on Ventus 3 Packaged Vehicles
Specifications:

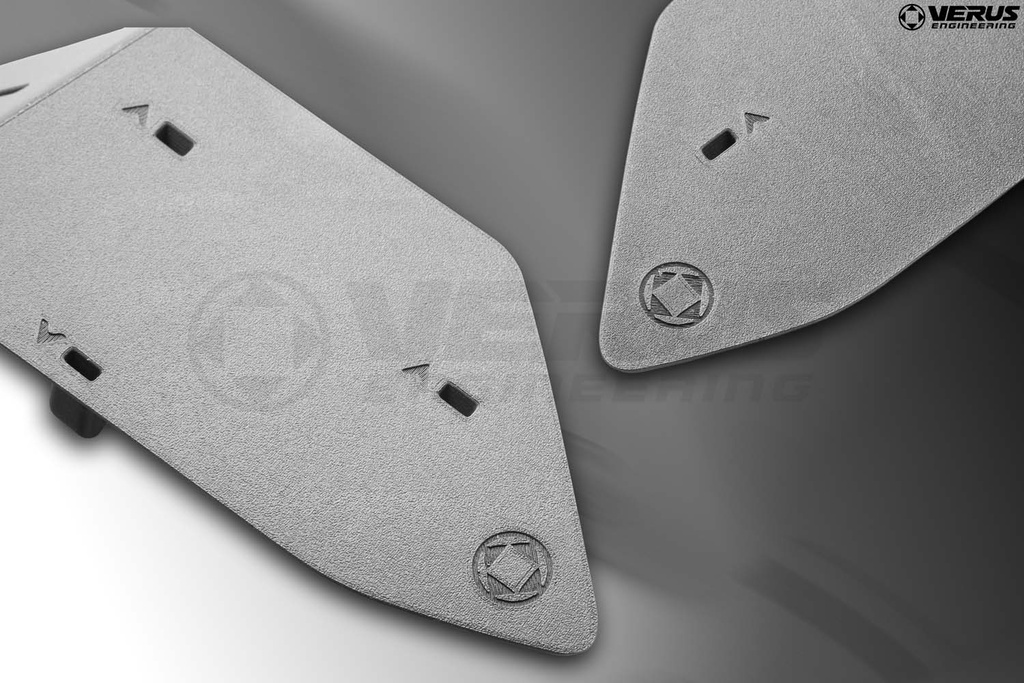

- Brake Duct Block-Off Plates: 3D-Printed Carbon Nylon for Strength and Durability

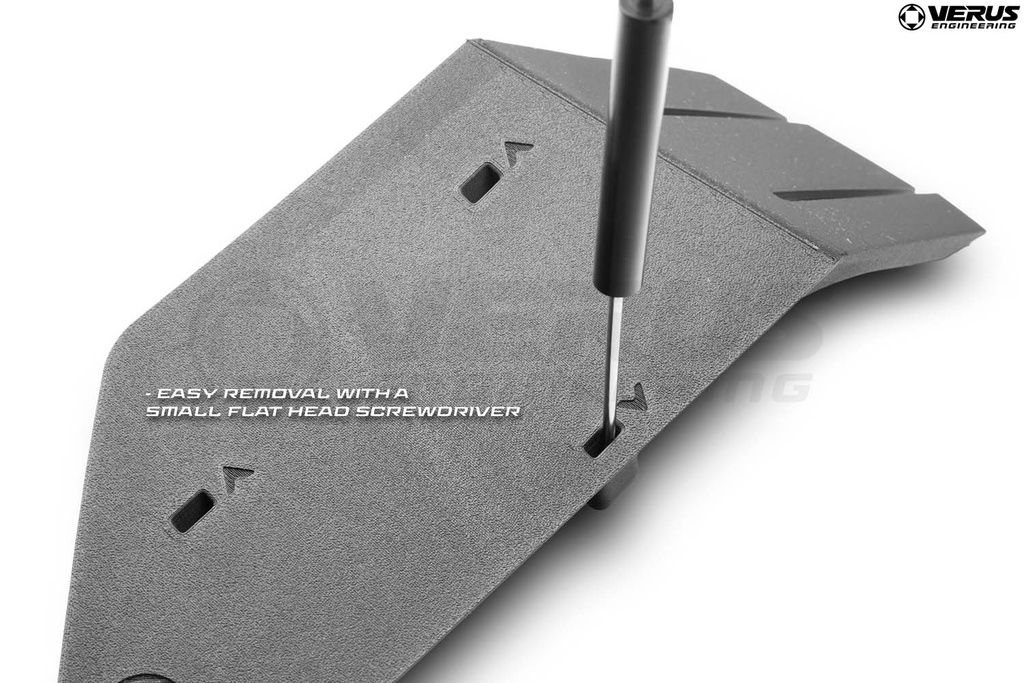

- Easy Clip-In Installation That is Reversible
Specifications:
- Brake Duct Block-Off Plates: 3D-Printed Carbon Nylon for Strength and Durability
- Easy Clip-In Installation That is Reversible
Science:
The Verus Engineering Brake Duct Block-Off Kit was specifically designed for the Corvette Stingray (C8) enthusiast who wants more front-end downforce. The kit blocks the unnecessary cooling ducts from the factory C8 Stingray Front Bumper, shifting the air pressure around the leading edge of the car in a more aerodynamically efficient manner that increases both downforce and front aero balance. As part of our Ventus 3 aerodynamic kit, the Brake Duct Block-Off Kit adds 5% more front aero balance than a similarly equipped car that does not have the brake ducts blocked off.
The block-off plates serve as an aerodynamic balance tuning device. Although these parts are highly efficient and installation is completely reversible, please ensure that you are confident in your braking performance and proceed with caution when removing cooling capacity.
Science:
The Verus Engineering Brake Duct Block-Off Kit was specifically designed for the Corvette Stingray (C8) enthusiast who wants more front-end downforce. The kit blocks the unnecessary cooling ducts from the factory C8 Stingray Front Bumper, shifting the air pressure around the leading edge of the car in a more aerodynamically efficient manner that increases both downforce and front aero balance. As part of our Ventus 3 aerodynamic kit, the Brake Duct Block-Off Kit adds 5% more front aero balance than a similarly equipped car that does not have the brake ducts blocked off.
The block-off plates serve as an aerodynamic balance tuning device. Although these parts are highly efficient and installation is completely reversible, please ensure that you are confident in your braking performance and proceed with caution when removing cooling capacity.
Simple to Install:
We're here to help you through the install process! We offer videos and detailed install manuals for the majority of our products.
For additional assistance and information, be sure to e-mail us at [email protected].
