Front Splitter Kit-C8 Corvette - Discontinued (BLEMISH)

Part Number: A0266A

$ 2,199.97 $ 2,199.97

  • Air Dam
Add to cart Buy now
Contact Us

Racer Special

Everything we make is special — sometimes we just make too many, and sometimes a piece leaves the shop with finishing tolerances just outside our usual high standards. Racer Special products are a perfect way to upgrade your ride and save at the same time. Because each one is unique, the cosmetic blemishes differ from unit to unit, and all Racer Special items are sold as final sale and are not covered by our warranty. Every one still carries the same design excellence and on-track performance Verus Engineering is known for. Check out this video to see exactly what you can expect from Racer Special goods.

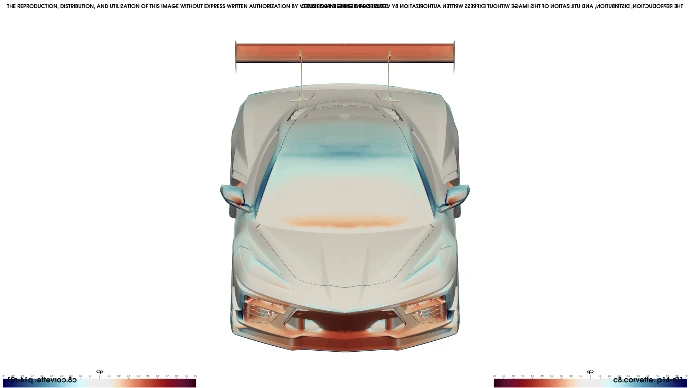

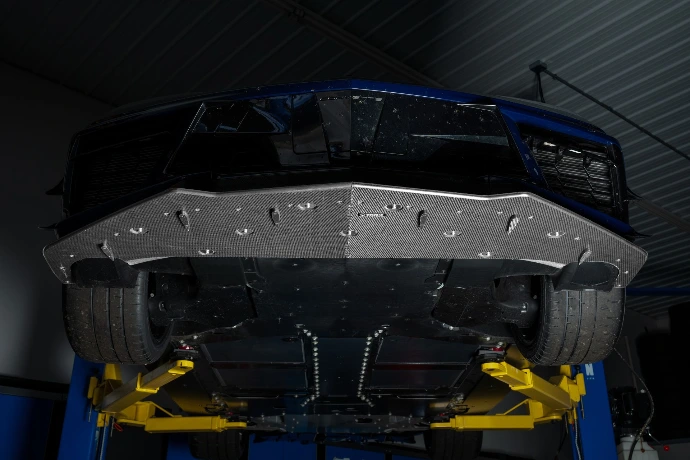

Front splitters are very effective at producing front-end downforce without increasing drag significantly. They do this by creating a large pressure delta between the top and bottom surfaces. Utilizing scan data directly from the car and CFD, we were able to produce a splitter that pairs well with our UCW rear wing and can easily handle the loads seen by the splitter. The splitter mounts to multiple chassis locations for a strong and durable mounting style. All hardware locations are recessed for improved aerodynamic performance.

The splitter is produced from a carbon polyweave, which is the same material used in high forms of Motorsports. The material is not brittle, so no more issues with cracking like carbon fiber and ABS. It will not grab and bend under the car like aluminum units either.  The material is also lightweight and stiff; which makes it a great splitter material.

The air dam is used to bring the splitter flat with the vehicle's underbody and improve performance further.  The air dam is produced from sheet aluminum and then powder coated black for durability.

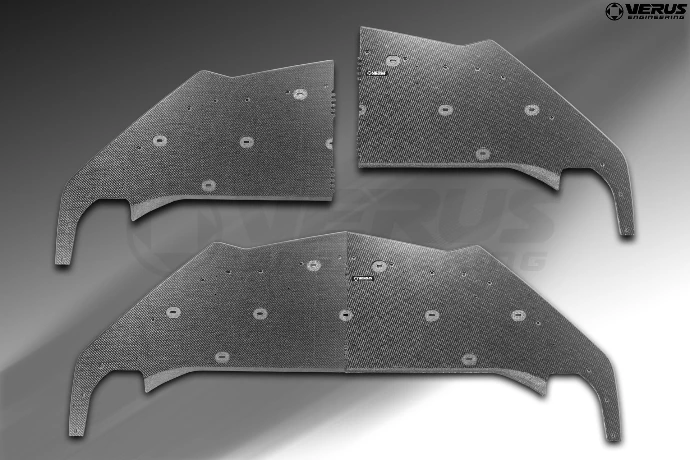

  • Two-Piece Carbon Polyweave Splitter Blade
  • Two-Piece Aluminum Front Air Dam
  • Sheet Aluminum/Steel Chassis Bracket (10 Pieces)
  • Rubber Splitter Edge Seal
  • Hardware Kit Including All Necessary Bolts/Nuts/Washers

A0266A

INSTALL AND DATA

INFORMATIVE PACKET


INSTALL MANUAL


INSTALL VIDEO


Features:

  • Greatly Increases Front End Downforce, Providing Balance for Large Rear Wings
  • Capable of Handling 300+ Lbs
  • Constructed From Carbon Polyweave, Which Offers Strength, Low Weight, Durability, and a Great Appearance
  • Splitter Support is Chassis Mounted Throughout for a Kit That Looks and Feels the Part
  • Integrated Air Dam that Contours the Front Bumper Lines, Available in Either Aluminum or Carbon Fiber

Specifications:

  • Carbon Polyweave Front Splitter: Carbon Thermoplastic Composition (Carbon Polyweave), Durable Material Used in Various Forms of Racing, Including Indy Car, NASCAR, and F1
  • Splitter Air Dam: Available in Your Choice of Aluminum or Carbon Fiber
  • Support Tube and Brackets: Steel and Aluminum Mounting System That Securely Holds the Splitter on the Car, Even at High Speed
  • Stainless Hardware Used Throughout and All Necessary Templates for a Seamless Installation

Science:

Front splitters, when designed properly, greatly increase front-end grip. Utilizing state-of-the-art analysis software, we were able to extract more performance from the front splitter and air dam combo through an iterative design process. We were also able to properly size the front splitter to counteract the rear wing and diffuser, creating a safe and effective aero balance for owners. This is important as an unbalanced car is more difficult to drive at the limit.

Our Carbon Polyweave Front Splitter Kit is an excellent complement to any Corvette Stingray, from the casual driving enthusiast to the avid track-day participant. These splitters are part of our Ventus 2 aerodynamic kit, which works in concert to add a significant amount of downforce to the car to help reduce lap times and increase corner speed.

Simple to Install:

We're here to help you through the install process! We offer videos and detailed install manuals for the majority of our products.

For additional assistance and information, be sure to e-mail us at [email protected].

What to expect from blemished items:

Racer Special items are cosmetic-blemish, final-sale products. Watch this video to see exactly what you can expect from a Racer Special part before you buy.
