UCW Rear Wing Kit - Subaru STI (VA) (BLEMISH)

https://www.verus-engineering.com/web/image/product.template/2776/image_1920?unique=4abb15f

1,769.95 1769.95 USD 1,769.95

1,649.95

Not Available For Sale

  • Carbon Endplates

This combination does not exist.

OVERVIEW

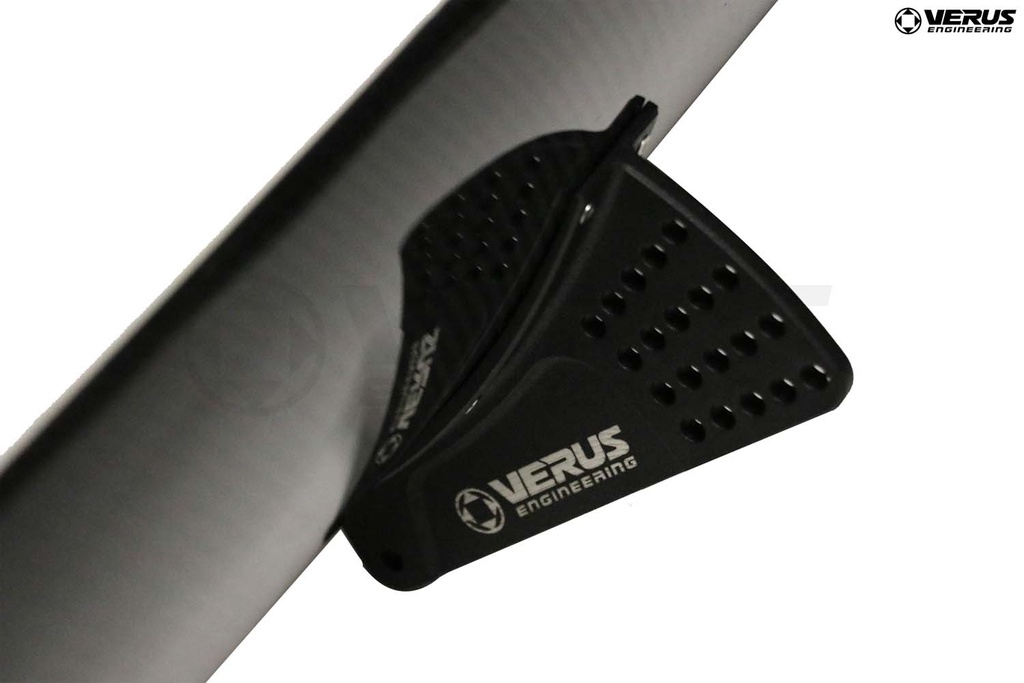

*The pictures provided above are not the blemished product. Blemish products have small defects on the surface finish or carbon but are structurally sound.*

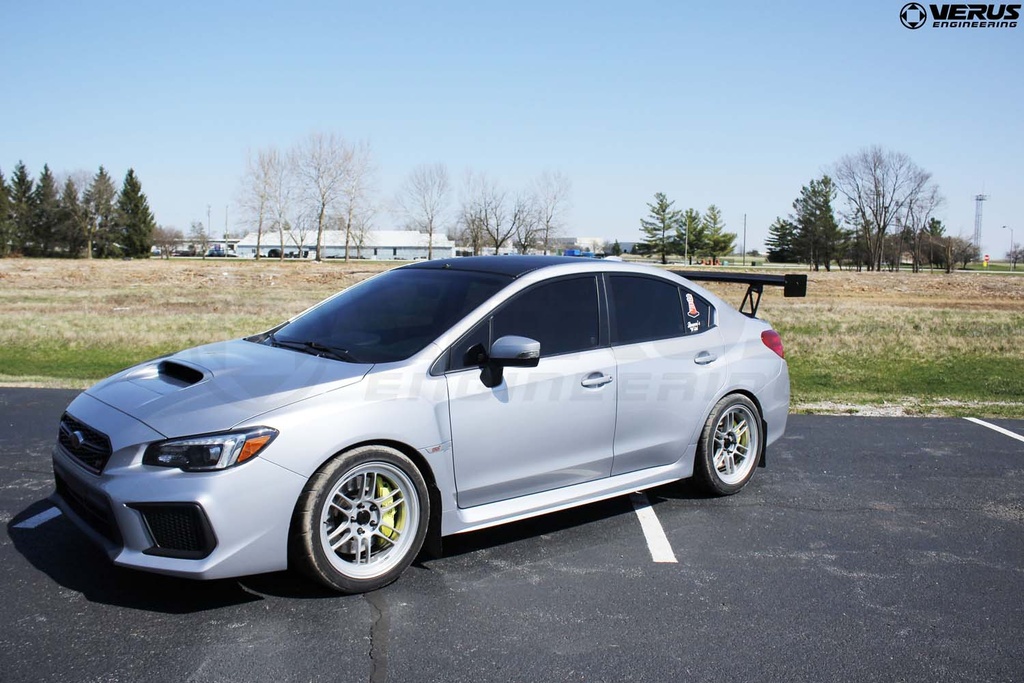

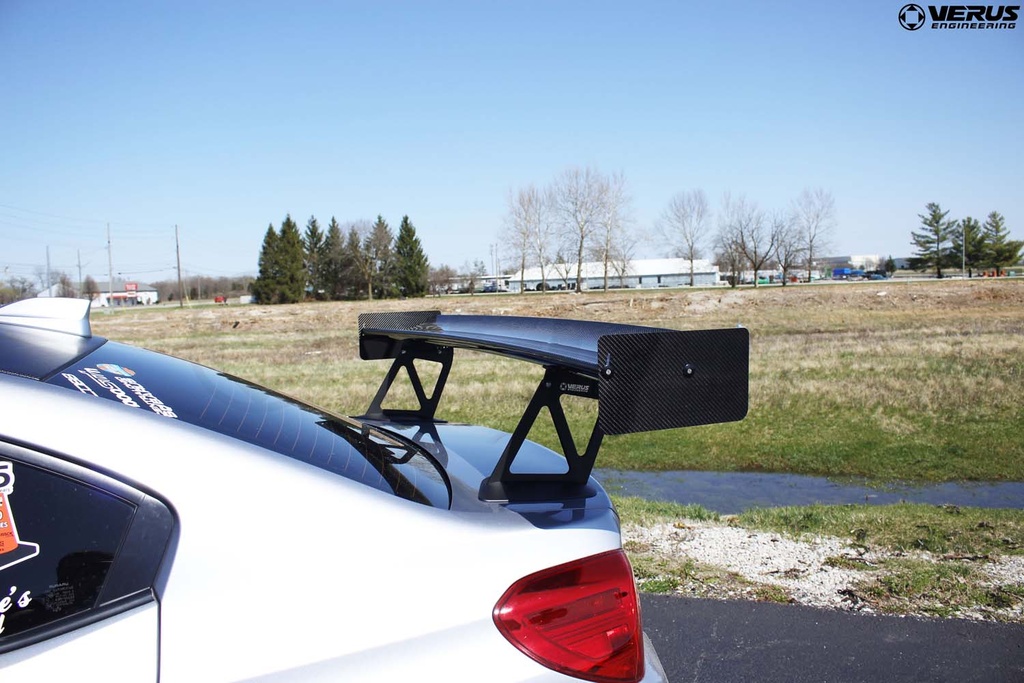

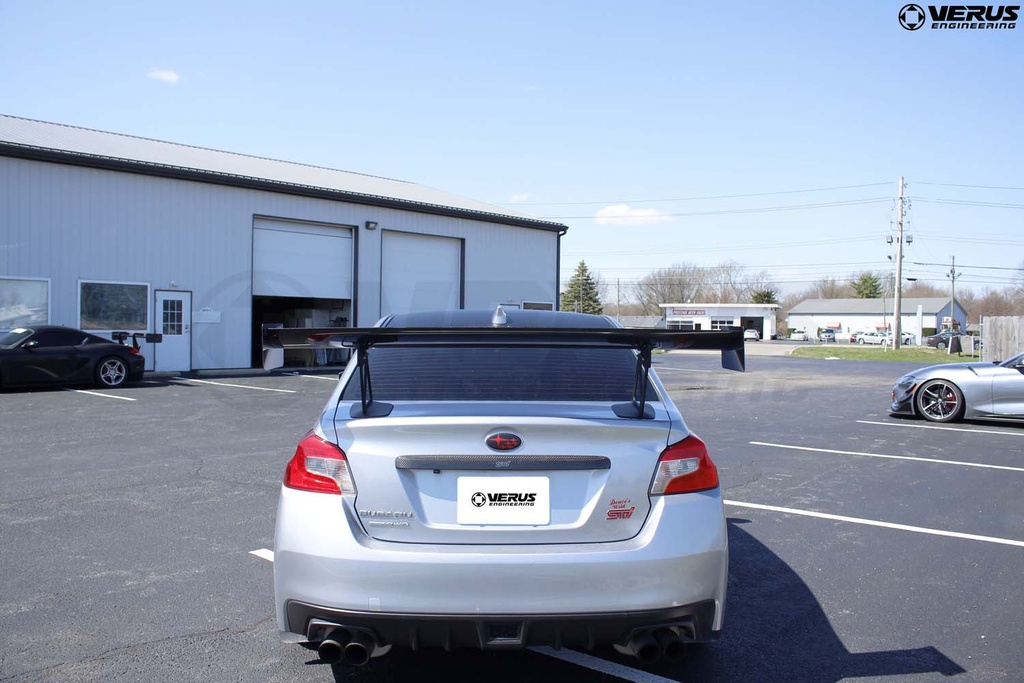

The UCW rear wing is a great addition to your VA STI to increase downforce significantly in the rear, increase confidence on track, and reduce lap times. The trunk mounts are beautifully sculpted pieces from 6061-T6 aluminum that bolt on like factory with hidden hardware for the uprights.

Verus Engineering developed the UCW rear wing to bridge the gap between our swan neck high-efficiency rear wing and our 300mm V1X airfoil.  With the 250mm curved chord, the UCW makes more downforce than the high-efficiency rear wing and significantly more downforce than similarly sized competitor wings.

Utilizing state-of-the-art analysis software during the R&D process, we optimized the airfoil for performance for the given build volume which is derived from the V1X.  Further utilizing CFD, we ensured the rear wing sees adequate airflow while installed and performs well.

During the design process; we utilized in-house scan data.  This results in a product that features a near OEM fit and finish.

The UCW wing is the perfect addition to the track goer who requires a large bump in rear downforce to balance out a significant front aero package.

WHAT IS INCLUDED

  • Rear Wing Element Assembly

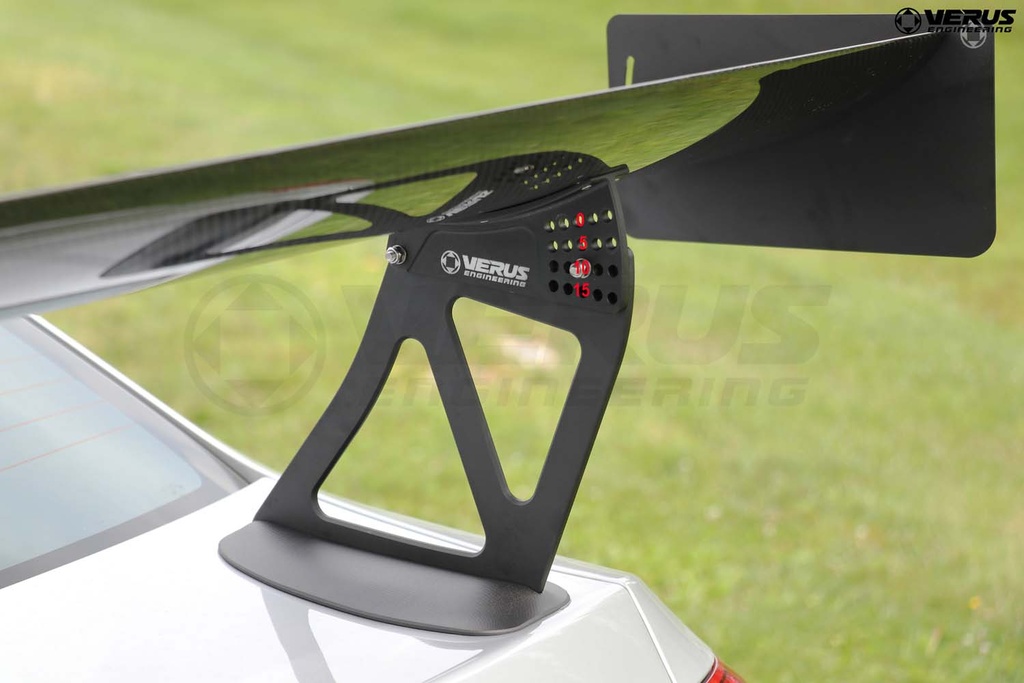

  • Rear Wing Upright, Machined Aluminum (2)

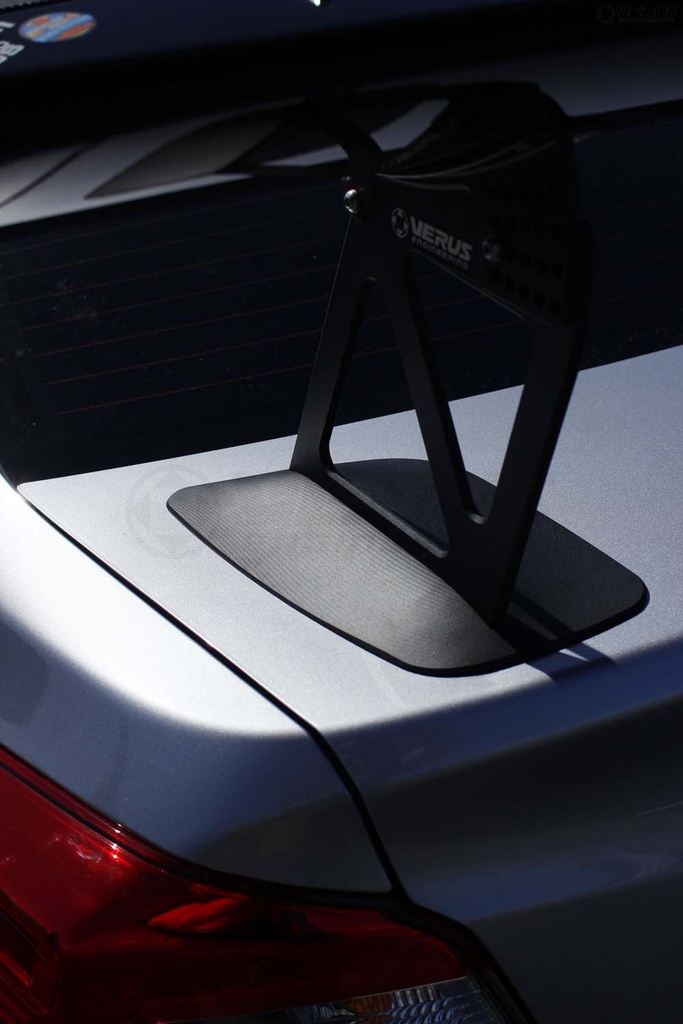

  • Rear Wing Trunk Mount, Machined Aluminum (2)

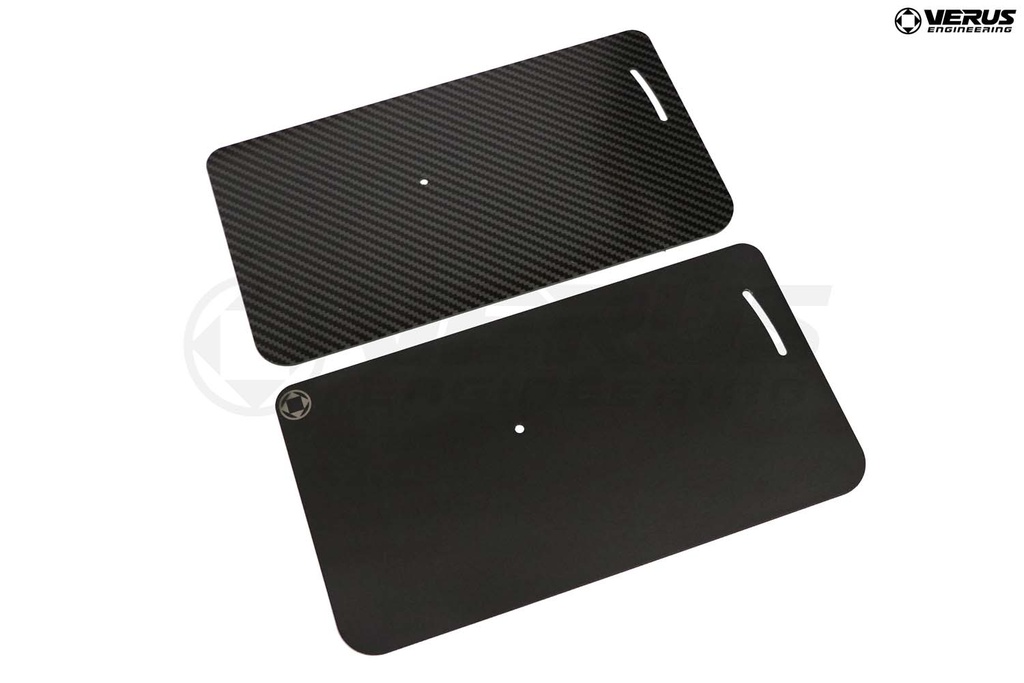

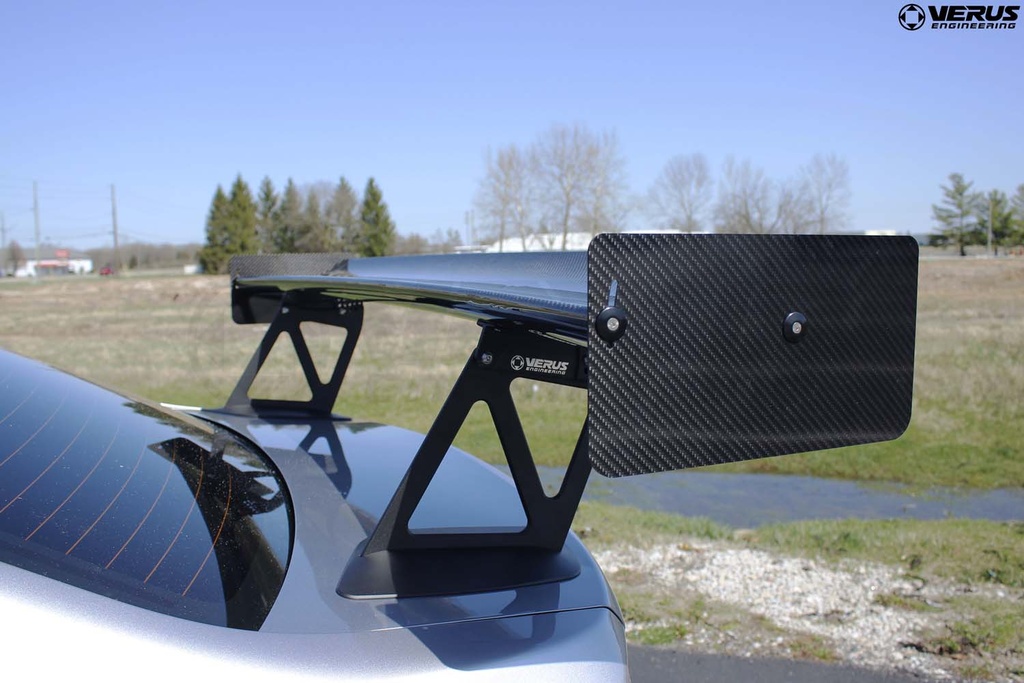

  • Rear Wing Endplate (2)

  • Hardware Kit, Includes All Parts Necessary for a Seamless Install

    • Includes Drill Template

    • Includes Trunk Load Transfer Hardware

    • Includes Trunk Double-Sided Tape

PART NUMBER

A0235A-CRB-BLEM

A0235A-BLEM

INSTALL AND DATA


INFORMATIVE PACKET


 INSTALL MANUAL


INSTALL VIDEO


FEATURES

Optimized Airfoil Using ANSYS Adjoint Solver

Improved Efficiency (L/D)

Increased Downforce

Bolts to OEM Trunk

Capable of Generating and Withstanding 500+lbs of Downforce

Capable of Balancing Out Significant Front Aerodynamic Systems





SPECIFICATIONS

Carbon Fiber Rear Wing - 2x2 Twill Pre-preg carbon, Autoclave Cured, Automotive High-Gloss Clear

Machined Billet Aluminum Uprights

Machined Billet Aluminum Trunk Mounts

Load Transferring Trunk System

Stainless Hardware Throughout





SCIENCE

The Verus Engineering UCW Rear Wing was specifically designed for the VA WRX enthusiast who wants more rear-end downforce than what our high-efficiency rear wing generates.  The wing has the capability of operating and generating downforce from 0 to 15 degrees angle of attack.  As part of our Ventus 3 aerodynamic kit, the rear wing, and aero kit adds a significant amount of downforce to the car to help reduce lap times and increase corner speed.

Our CFD data and our real-world experimental data match up quite well. The wing hit all the major goals we set forth to achieve first in our CFD simulations and then with our real-world testing. The strong correlation between CFD data and real-world testing validates both our CFD analysis approach and the wing’s performance.
