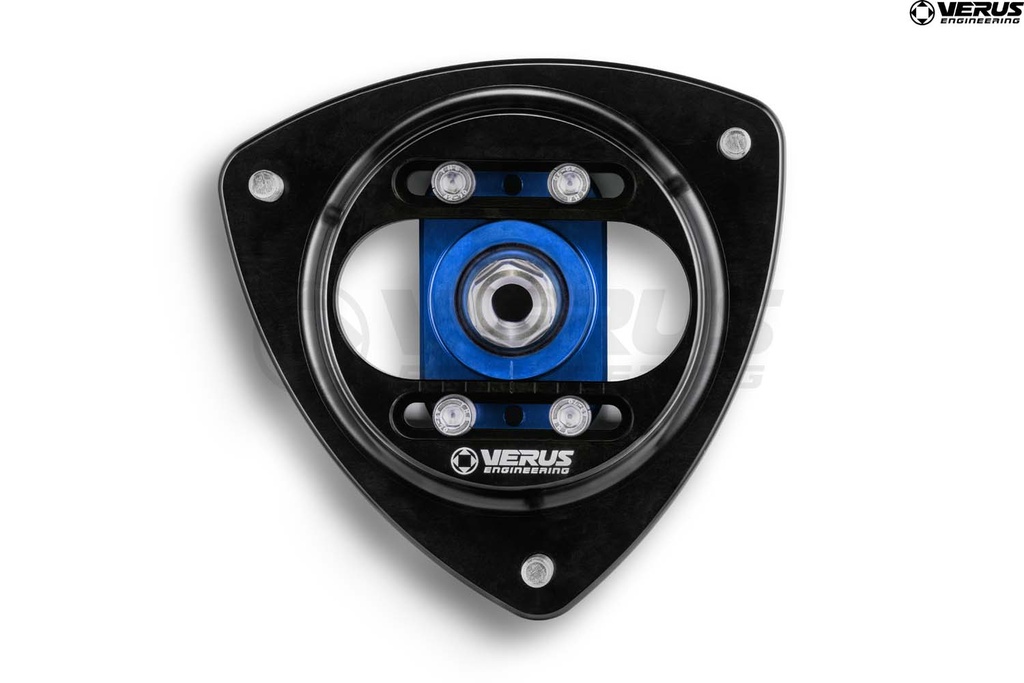

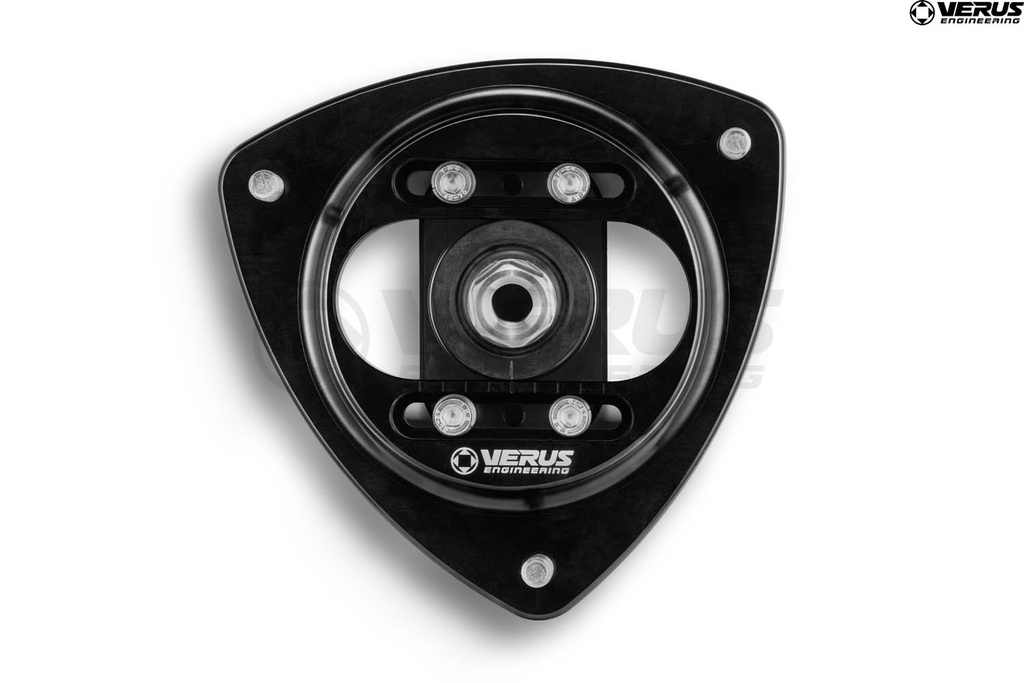

Front Camber Plate Assembly - BRZ/FRS/GT86/GR86

https://verus-engineering.odoo.com/web/image/product.template/349/image_1920?unique=885a32c

389.95 389.95 USD 389.95 ​

389.95 ​

Not Available For Sale

  • Color

This combination does not exist.

OVERVIEW


The Verus Engineering Camber Plates allow you to adjust camber up to -3 degrees at stock ride height without camber bolts.

We utilize high-end, wide-body spherical bearings to increase driver feel and connection with the road without sacrificing longevity.

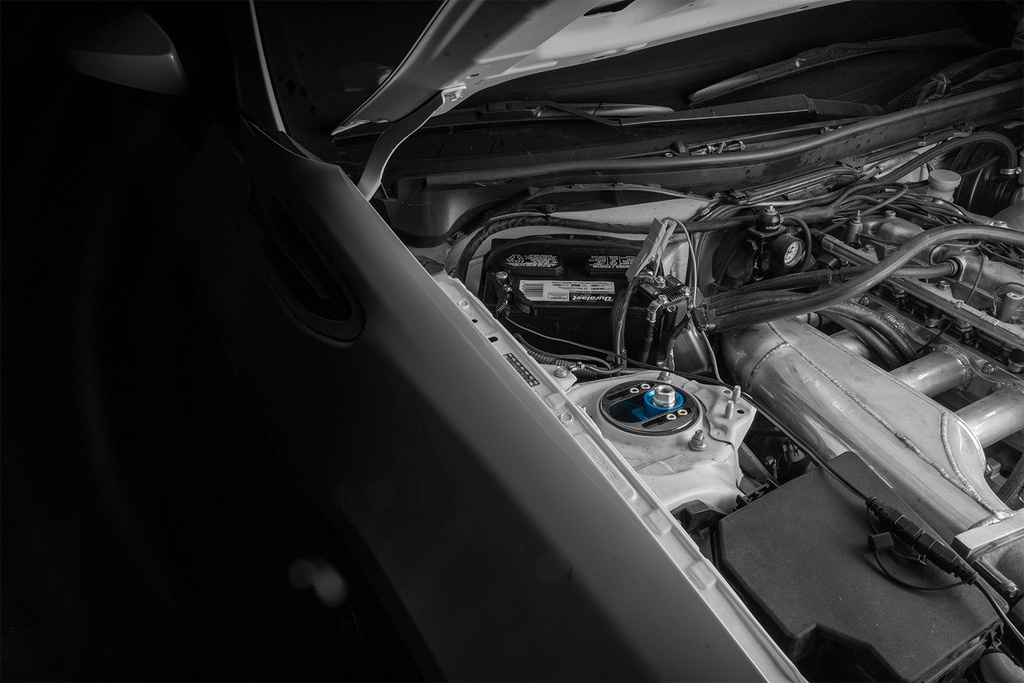

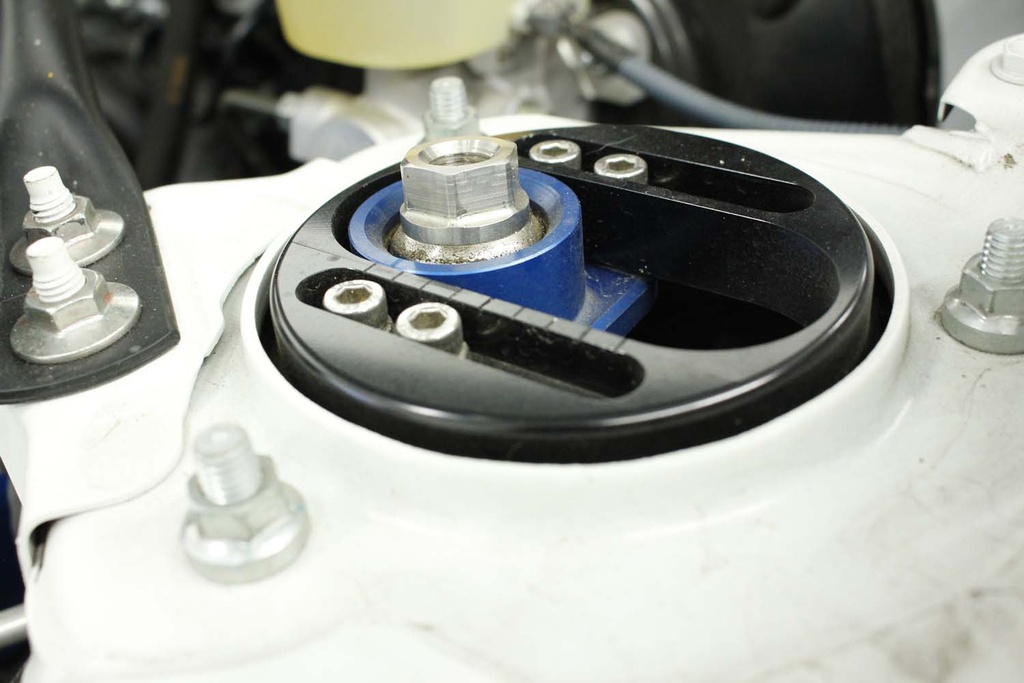

These camber plates are direct replacements for the OEM top hats and retain the same installed height as the OEM units.

Disclaimer:

  • Koni Yellow Struts require the top nut to be modified.
  • Tein Coilovers require Raceseng Top Nut in order to be compatible.
  • Not compatible with Ohlins R&T Coilovers.

WHAT IS INCLUDED


  • Camber Plate, Left-Hand, Assembled
  • Camber Plate, Right-Hand, Assembled
  • Spherical Bushing (2)
  • Spherical Nut (2)
PART NUMBER

A0019A-BLU

A0019A-BLK

A0019A-RED

INSTALL AND DATA


INSTALL MANUAL


INSTALL VIDEO





FEATURES

  Lightweight Design (Save 15 oz Per Side)

Quick and Painless Adjustments

Reduce Compliance for an Enhanced Feel Behind the Wheel

All Aluminum Pieces are Anodized for Corrosion Resistance

Up to -3 degrees of camber at stock ride height without camber bolts


SPECIFICATIONS

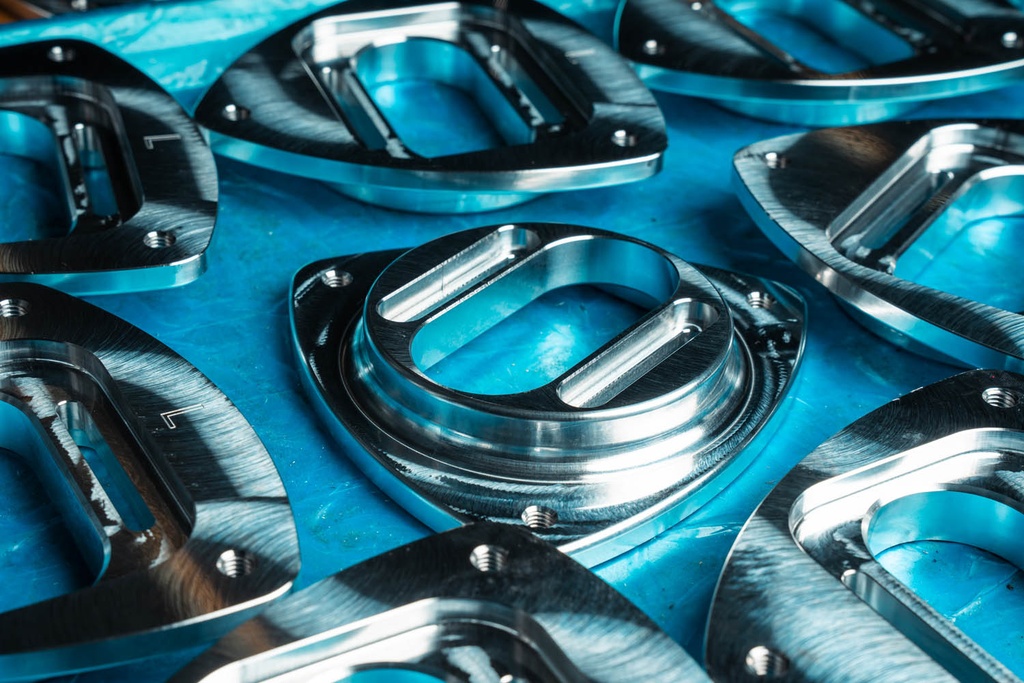

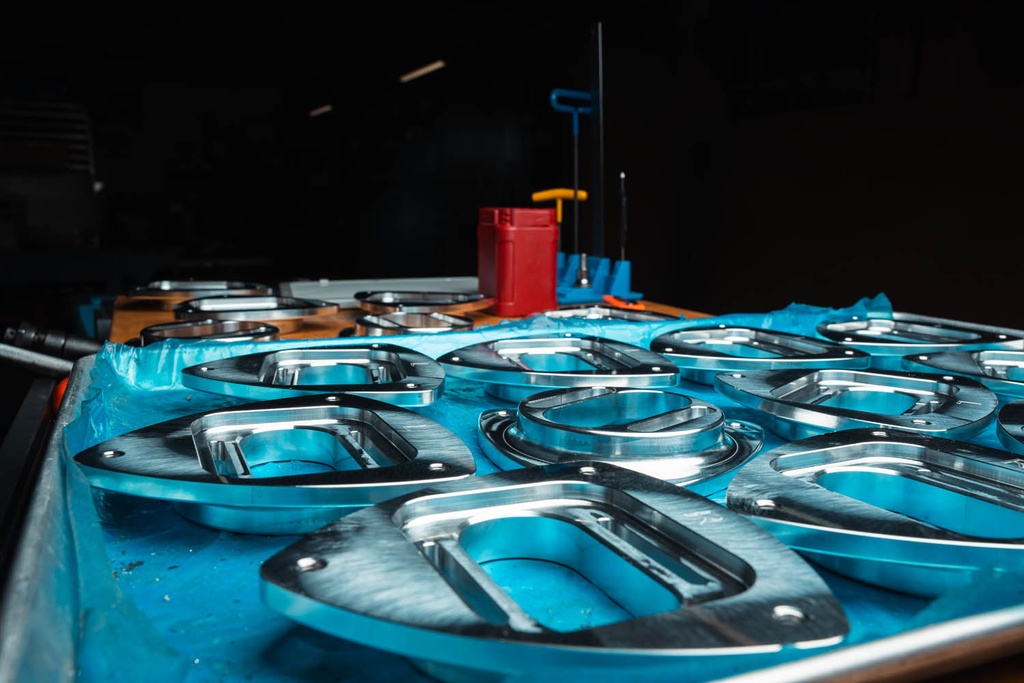

  Billet 6061-T6 Machined Aluminum Construction

Stainless Hardware Used Throughout

Wide Series Spherical Bearing, PTFE Lined, 440 Stainless Ball, 17-4 PH Stainless Race

Clinch Press In Studs for OEM Like Install

Made in the U.S.A.


SCIENCE

Camber is the angle at which the wheel and tire are positioned in comparison to the road assuming the road flat. While one might believe that the wheel is perfectly perpendicular to the road, it is often intentionally tilted to counteract the forces put on it by cornering. Negative camber is generally desired in track cars. Negative camber helps counteract the tendency of the tire to roll on its outer edge during cornering. In turn, this keeps as much tire on the road as possible while cornering and allowing for more grip and higher cornering speeds.
