OVERVIEW
The Verus Engineering Dual Dive Planes Kit for the BMW G80/G82 M3/M4 was specifically designed to increase front-end downforce while keeping drag increase to a minimum. The units work together to aid in extracting airflow from the wheel well, as well as produce downforce themselves on the front axle of the car. We tested various designs in CFD and found this package to be the most beneficial, even when compared to GT4 M4 style canards or dive planes.
The dive planes produce a safe aero balance with or without the addition of our rear diffuser. These units were designed in CAD using in-house scan data and optimized using CFD analysis.
These units are constructed from 1.5mm thick pre-preg, autoclaved cured, 2x2 twill carbon, with a polished, high gloss finish.
Dive planes also referred to as canards, allow you to shift the aero balance forward, possibly aiding you and your setup in balancing out a large rear wing, diffuser, or aiding with front grip in on track.
WHAT IS INCLUDED

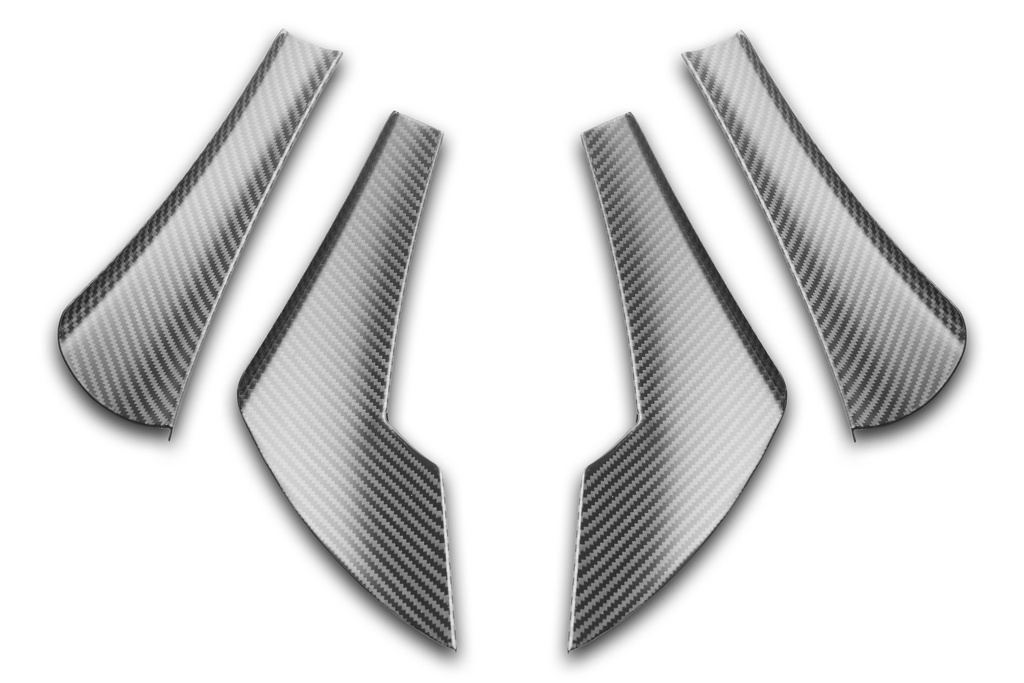

- Dive Plane, Right-Hand Top
- Dive Plane, Left-Hand Top
- Dive Plane, Left-Hand Bottom
- Dive Plane, Right-Hand Bottom
- Install Template
- 3M VHB Tape (6 Pieces Total)
Features:
- CFD Optimized for Improved Performance
- Shift Aero Balance Forward (Improves Front End Grip)
- Allows Fine-Tuning of Aero Balance (Forward Biased)
- Simple, Non-invasive, Double-Sided Tape Installation with Templates (Included)
Features:
- CFD Optimized for Improved Performance
- Shift Aero Balance Forward (Improves Front End Grip)
- Allows Fine-Tuning of Aero Balance (Forward Biased)
- Simple, Non-invasive, Double-Sided Tape Installation with Templates (Included)
Specifications:
2x2 Weave, Autoclave Cured, 1.5mm Thick Carbon Fiber
Specifically Contoured and Designed to the Supra Bumper
3M VHB Double Sided Tape, Cut Specifically to Dive Plane Sizes
Templates to Aid During Install
Specifications:
- 2x2 Weave, Autoclave Cured, 1.5mm Thick Carbon Fiber
- Specifically Contoured and Designed to the Supra Bumper
- 3M VHB Double Sided Tape, Cut Specifically to Dive Plane Sizes
- Templates to Aid During Install
Science:
Dive planes help tune the aerodynamic balance of a vehicle by shifting the balance forward without the need for a larger front splitter. A larger front splitter can be prohibitive to driving the car on the street, thus we were able to create a street-able package that produces enough front end downforce to balance the large rear wing and diffuser on our various Ventus kits. We developed the dual dive plane kit to work well with our Ventus 1 and 2 Aero Packages for the G82 BMW M4.
Science:
Dive planes help tune the aerodynamic balance of a vehicle by shifting the balance forward without the need for a larger front splitter. A larger front splitter can be prohibitive to driving the car on the street, thus we were able to create a street-able package that produces enough front end downforce to balance the large rear wing and diffuser on our various Ventus kits. We developed the dual dive plane kit to work well with our Ventus 1 and 2 Aero Packages for the G82 BMW M4.
Why go with a genuine Verus product?
The G-Series BMW has been nothing but great for us, and we sincerely thank you and the rest of the community for the support.
Unfortunately, it has come to our attention that our BMW products are being heavily copied. This is to be expected when you are one of the best in the business. The real issue lies with the fact that these counterfeits are shamelessly using our name and our logo.
Verus Engineering has no affiliation with these manufacturers, and ALL of the work that we ship out is designed and manufactured internally and locally here in Indianapolis, IN.
Simple to Install:
We're here to help you through the install process! We offer videos and detailed install manuals for the majority of our products.
For additional assistance and information, be sure to e-mail us at [email protected].
Building the M4 Kit from Scratch:
The development of the G-Series BMW M4 has been a labor of love. Follow along as we chart Verus Engineering's journey through this comprehensive aerodynamic exercise!
A Full Overview:
Follow along in this video as Eric and Mat from the Verus Engineering Team give additional insight into the design and approach to our G82 Aero Kit.
Why go with a genuine Verus product?
The G-Series BMW has been nothing but great for us, and we sincerely thank you and the rest of the community for the support.
Unfortunately, it has come to our attention that our BMW products are being heavily copied. This is to be expected when you are one of the best in the business. The real issue lies with the fact that these counterfeits are shamelessly using our name and our logo.
Verus Engineering has no affiliation with these manufacturers, and ALL of the work that we ship out is designed and manufactured internally and locally here in Indianapolis, IN.
Simple to Install:
We're here to help you through the install process! We offer videos and detailed install manuals for the majority of our products.
For additional assistance and information, be sure to e-mail us at [email protected].
Building the M4 Kit from Scratch:
The development of the G-Series BMW M4 has been a labor of love. Follow along as we chart Verus Engineering's journey through this comprehensive aerodynamic exercise!
A Full Overview:
Follow along in this video as Eric and Mat from the Verus Engineering Team give additional insight into the design and approach to our G82 Aero Kit.
