Front Splitter Kit - Porsche 991.1 GT3RS

https://www.verus-engineering.com/web/image/product.template/1856/image_1920?unique=99bdddf

4,495.00 4495.0 USD 4,495.00

4,495.00

Not Available For Sale

    This combination does not exist.

    OVERVIEW

    Front splitters are very effective at producing front end downforce without increasing drag significantly. They do this by creating a large pressure delta between the top and bottom surfaces. We then incrementally improved the front splitter by adding design tweaks to the underside of the splitter to improve flow with our carbon splitter diffusers. All of this adds up to a front splitter kit for the 991.1 GT3RS that creates a large amount of additional front end downforce.

    The splitter is produced from a carbon thermoplastic, which is the same material used in high forms of Motorsports. The material is not brittle, so no more issues with cracking like carbon fiber and ABS. It will not grab and bend under the car like aluminum units either. It is a great splitter material.

    Bracketry was designed off scan data and precision cut and bent to ensure repeatability. The carbon diffusers were developed in CFD to promote flow and improve downforce generation. The splitter was designed to balance out large rear wings, more specifically our V1x for the chassis.

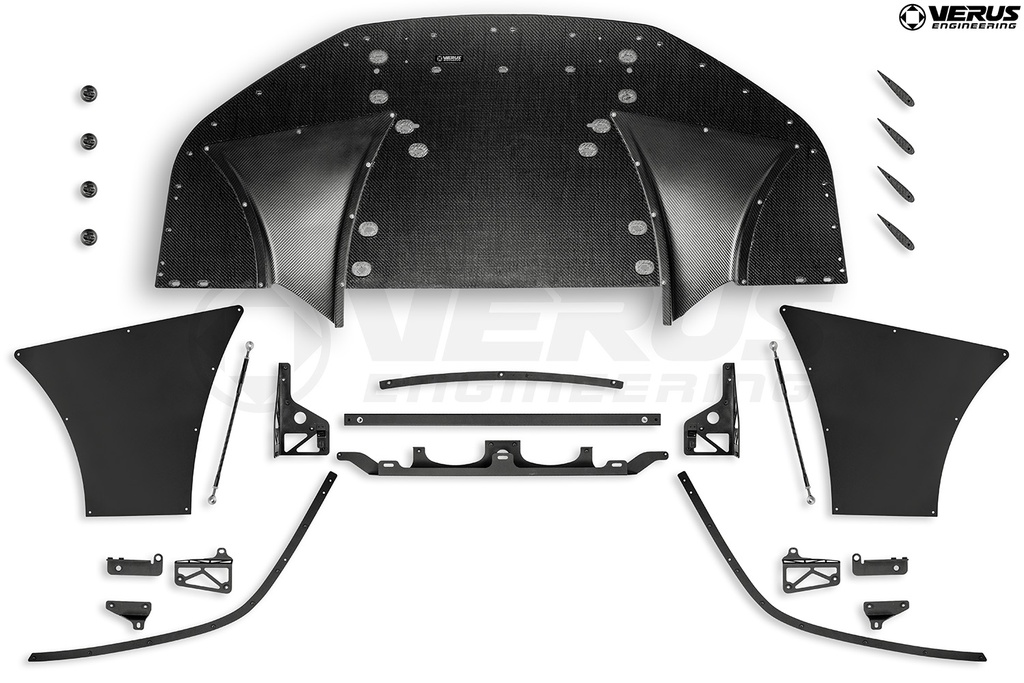

    WHAT IS INCLUDED

    • Carbon Polyweave Splitter (1)
    • Polyweave Grind Strake (4)
    • Carbon Splitter Diffuser (2)
    • Sheet Aluminum Diffuser Block Off (2)
    • Sheet Metal Bracket Kit (13 Pieces)
    • Steel Cross Beam Tube (1)
    • Clevis (4)
    • Splitter Support Rod Assy (2)
    • Hardware Kit, Including all Hardware Necessary for a Seamless Install
    PART NUMBER

    A0243A

    INSTALL AND DATA


    INFORMATIVE PACKET


    INSTALL MANUAL


    Install Video





    FEATURES

     Greatly Increases Front End Downforce

    Produces High Downforce for Large Rear Wings

    Capable of Handling 300+ Lbs

    Constructed From Carbon Thermoplastic, Which Offers Strength, Low Weight, Durability, and a Great Appearance

    Same Material Used in Various Forms of Racing, Including Indy Car, NASCAR, and F1

    Non-Invasive / Easy Install



    SPECIFICATIONS

    Front Splitter is Manufactured From Carbon Thermoplastic, Offering Superior Strength, Weight, Durability, and Appearance to Many Other Options

    Will Not Grab and Bend Surfaces Like Aluminum Units

    Will Not Crack and Break Like Carbon and ABS Units

    Abrasive Resistant While Stiff

    CNC Cut and Bent Brackets

    Stainless Hardware Throughout





    SCIENCE

    Front splitters, when designed properly, greatly increase front-end grip and this is the case with our splitter and the 991.1 GT3RS.  Utilizing state-of-the-art analysis software, we were able to extract more performance from the front splitter, air dam, and diffuser combo through an iterative design process. We were also able to properly size the front splitter and dive planes to counteract the rear wing and factory diffuser creating a safe and effective aero balance.

    The front splitter is part of our Ventus 2 and 3 Kit for the Porsche 991.1 GT3RS. The Ventus 2 and 3 kit boosts downforce significantly from the factory vehicle. The goal was to create a package that dramatically improved the aerodynamic performance of a factory 991.1 Porsche GT3RS in a safe and balanced package for the typical track/HPDE enthusiast. Another goal was to retain street-ability from the aerodynamic components; with reasonable front splitter stick-out and rear wing widths.
