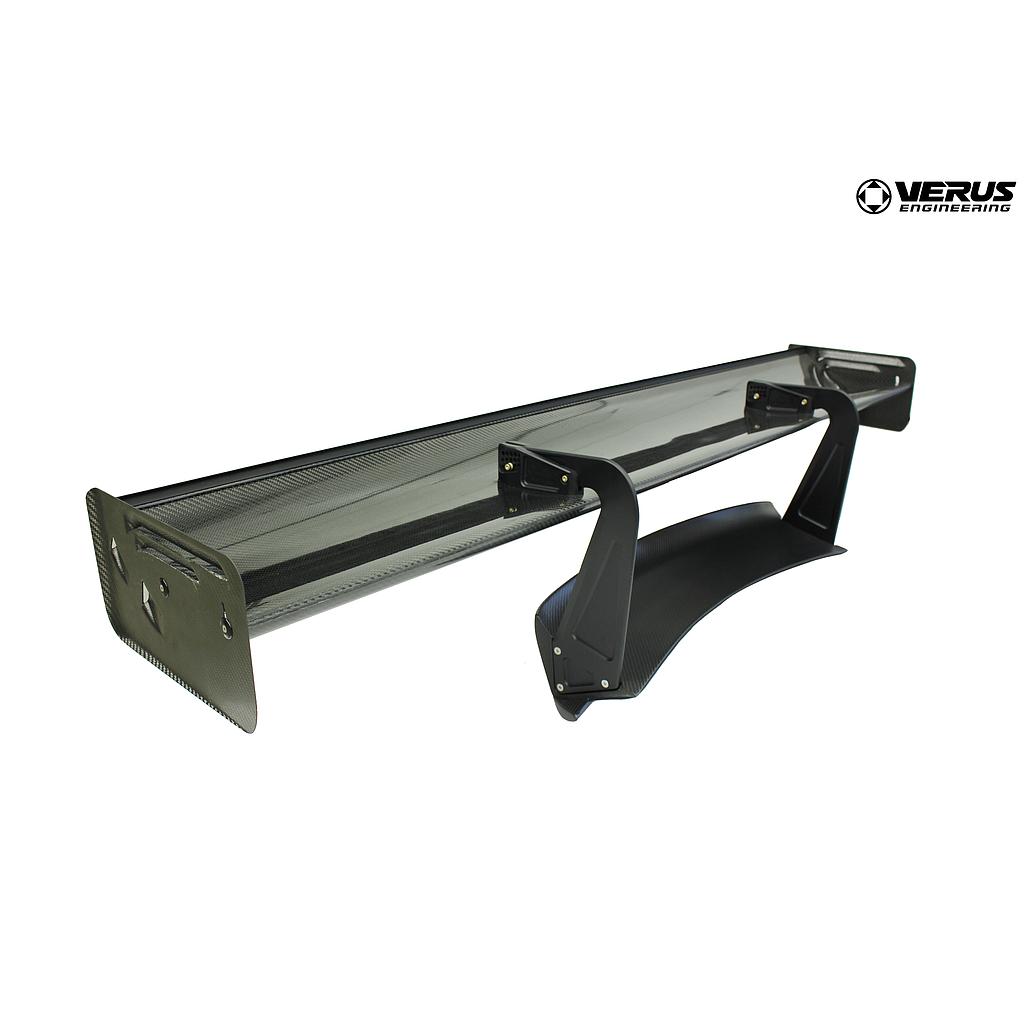

Rear Wing Kit, Includes Carbon Spoiler - 987 Porsche Cayman

https://verus-engineering.odoo.com/web/image/product.template/1030/image_1920?unique=dcb780a

5,449.95 5449.95 USD 5,449.95 ​

5,449.95 ​

Not Available For Sale

    This combination does not exist.

    OVERVIEW

    Dramatically improve rear-end grip at speed with our 300mm chord, swan neck wing with carbon spoiler for the 987 Porsche.

    The wing and full aero kit were designed in CFD to greatly improve the vehicle's performance around the track. The wing alone has the ability to dramatically reduce lap times.

    Construction on the rear wing is the same of that in Motorsport; as it is built by a Motorsport wing provider in the U.S.A.

    The uprights are CNC machined from 6061-T6 aluminum and were FEA analyzed to ensure strength was kept high while weight was minimized.  The carbon spoiler installs onto the OE trunk with a multitude of bolts and transfers load through multiple points to the chassis.

    WHAT IS INCLUDED

    • Carbon Rear Wing, 300mm Chord Swan Neck
    • Carbon Vented Endplate (2)
    • Billet Swan Neck Mount (2)
    • Billet Swan Neck Upright (2)
    • Carbon Ducktail Spoiler
    • Gurney Flap
    • 3M VHB Double-Sided Tape, Gurney Flap
    • Drill Template
    • Hardware Kit, Includes All Necessary Hardware for Install
    PART NUMBER

    A0138A

    INSTALL AND DATA


    INFORMATIVE PACKET


    INSTALL MANUAL



    FEATURES

    CFD Optimized Airfoil

    Highly Efficient (Great L/D)

    15 Total Adjustment Angles (-1 to 14 degrees)

    Lightweight and High Strength

    Capable of Generating and Handling Over 700lbs of Downforce at 120MPH

    Swan Neck Design for Improved Efficiency from the Wing Element


    SPECIFICATIONS

    Rear Wing

    2x2 Twill, 3k, Pre-Preg Carbon Fiber

    Cured in an AutoClave

    Carbon Inner Rib for Strength

    Carbon Endplates

    300mm Chord w/ 1581mm Length (PCA Spec)

    Duck Tail

    2x2 Twill, 3k, Pre-Preg Carbon Fiber

    Cured in an AutoClave

    Aluminum Mounts Bonded In

    Double-Sided Tape and Foam Pre-Applied


    Mounting

    Machined 6061-T6 Aluminum Mounts and Uprights

    Military Spec (NAS) Hardware On Wing

    Stainless Hardware Throughout


    SCIENCE

    The Verus Engineering 300mm Rear Wing kit was specifically designed for the Porsche enthusiast who wants more rear-end downforce for track days. The airfoil profile was run through ANSYS Adjoint solver to improve its efficiency. Through this iterative improvement process, we were able to improve the wing profile's performance. The wing was specifically placed to improve performance and create a good aero balance with the rest of the Verus Engineering Ventus 2 kit. The Ventus 2 kit produces a significant increase in downforce generated vs. the factory car and will reduce lap times substantially.

    Our CFD data and our real-world experimental data matched well with the rear wing. The wing hit all the major goals we set forth to achieve first in our CFD simulations and then with our real-world testing. The strong correlation between CFD data and real-world testing validates both our CFD analysis approach and the wing’s performance.
