Turbo Heat Shield Kit - (2020) Mk5 Toyota Supra

https://www.verus-engineering.com/web/image/product.template/1218/image_1920?unique=95e56c3

169.95 169.95000000000002 USD 169.95

169.95

Not Available For Sale

  • Color

This combination does not exist.

OVERVIEW

The Verus Engineering Turbo Heat Shield for the A90 Supra is perfect for keeping heat around the turbo area and freeing up engine bay space.  If running an aftermarket intake; it is a great addition to reduce heat soak as well.  Removing the factory resonator and heat shields greatly improves engine bay aesthetics and available room.

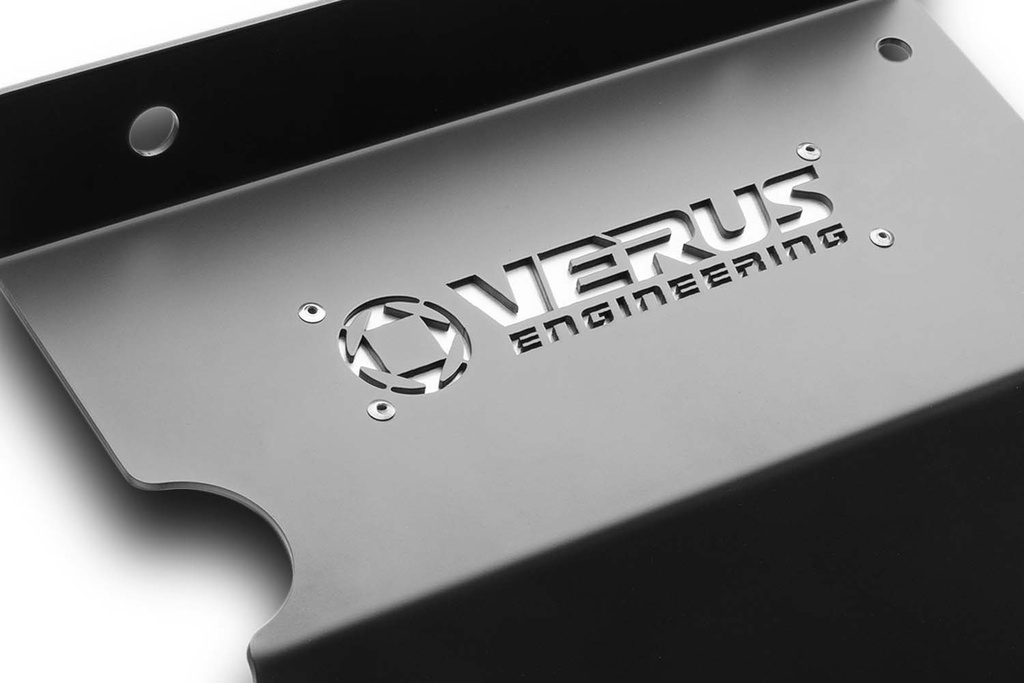

The heatshield is produced from 2.0mm thick stainless steel sheet metal which is CNC laser cut, CNC bent, and then finished in high-temp Cerakote.  The heat shield was designed off scan data obtained internally for an OE like fit.

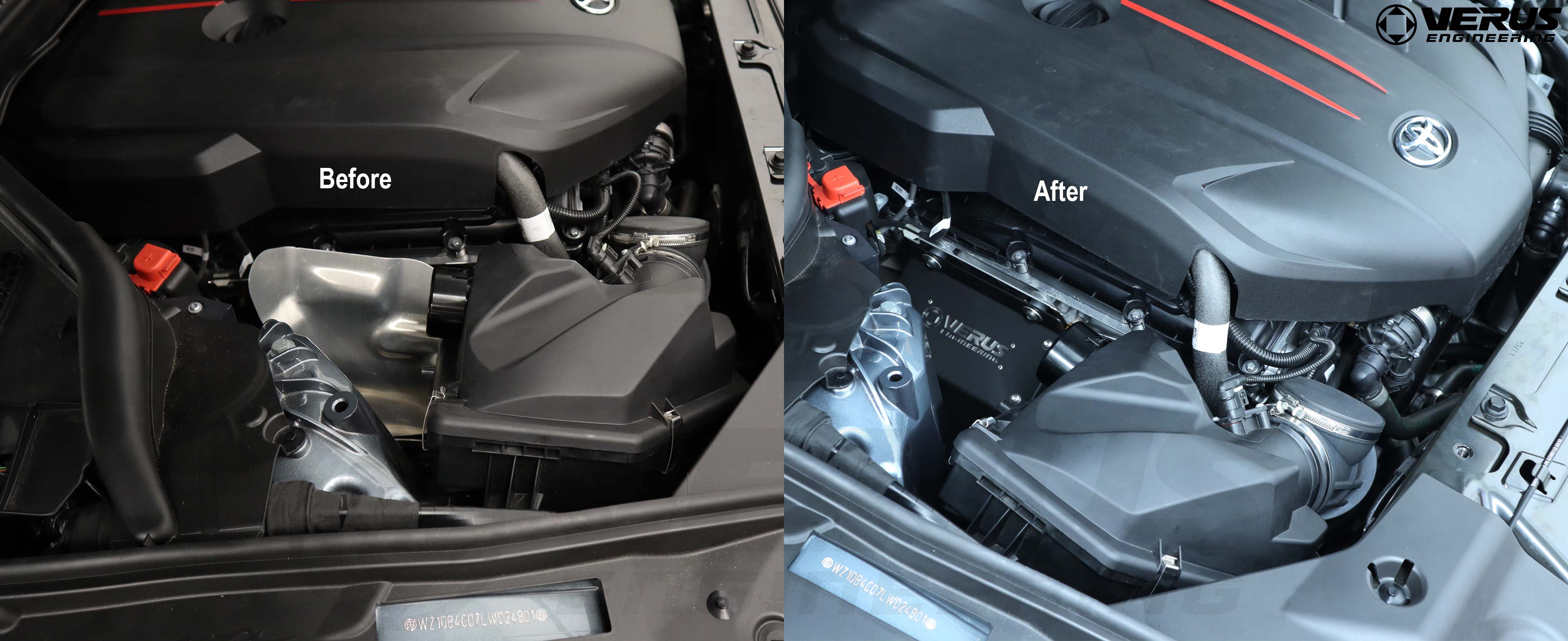

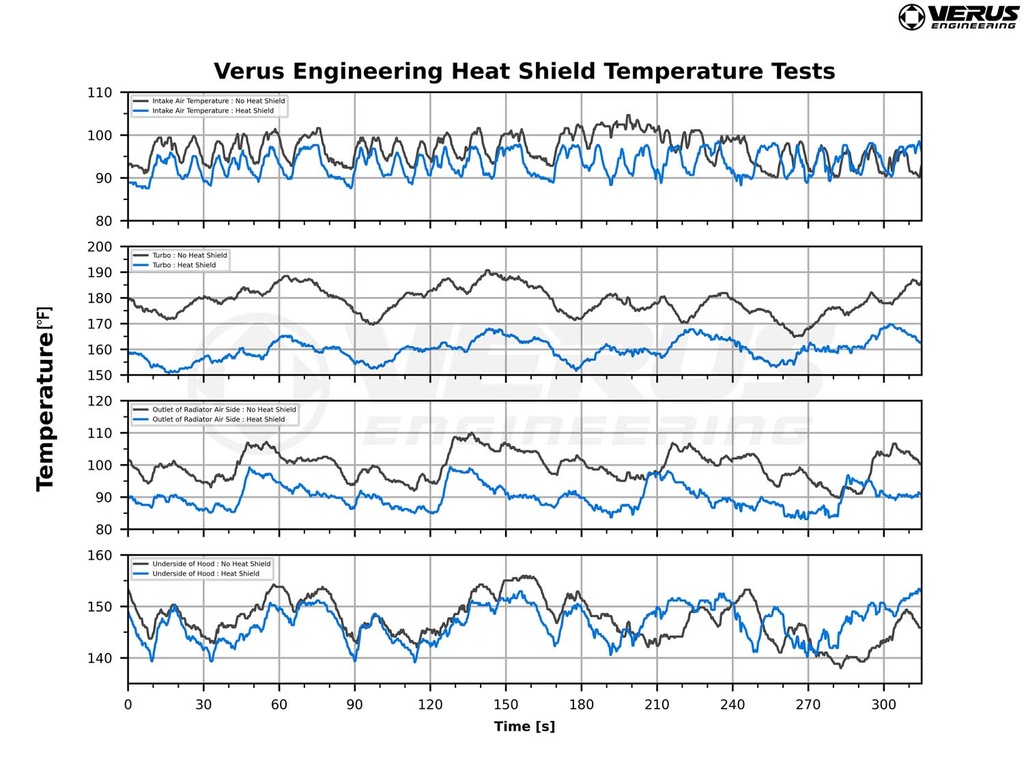

Utilizing our unit, you can expect a better-looking engine bay, better thermal properties, and less heat soak.

*Please Note: This only fits on 2020 GR Supra with the Two-Port Manifold! Only works with 3.0L models.*

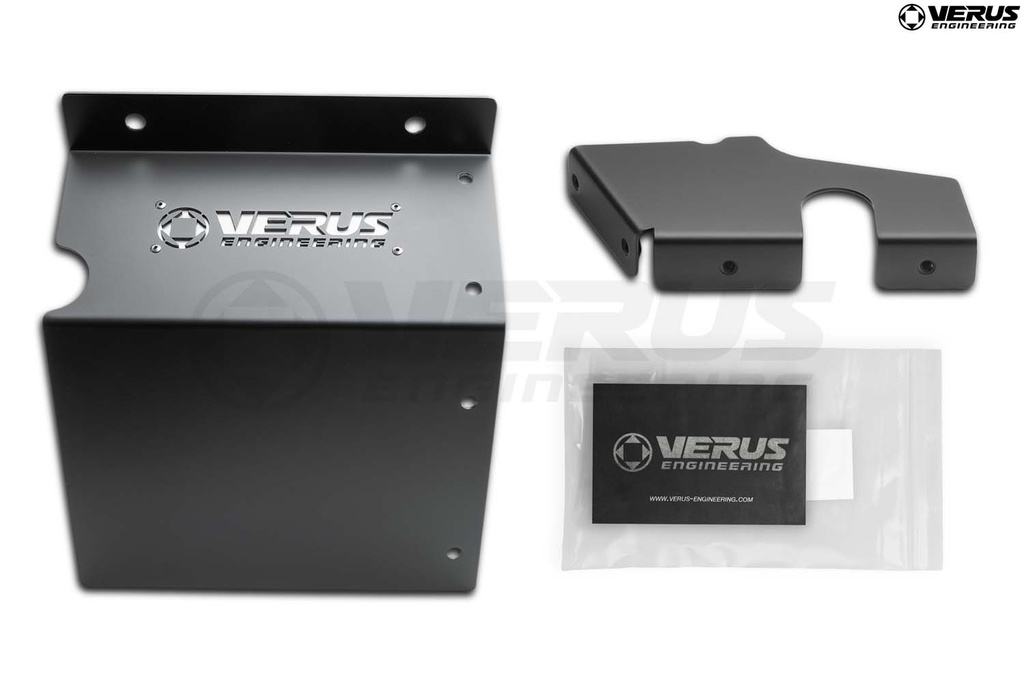

WHAT IS INCLUDED

  • Cerakote Coated Stainless Heat Shield Main Cover
  • Cerakote Coated Stainless Heat Shield Side Cover
  • Hardware Kit, Includes All Hardware Necessary for Install
PART NUMBER

A0217A-B

A0217A-S

INSTALL AND DATA


INFORMATIVE PACKET


INSTALL MANUAL


INSTALL VIDEO

Features:



- Excellent Coverage of Turbine-Fold Area

- Improved Engine Bay Aesthetics

- Thick 2.0mm Stainless Construction

- Improved Heat Rejection Characteristics

- Simple Bolt-On Install


Features:



- Excellent Coverage of Turbine-Fold Area

- Improved Engine Bay Aesthetics

- Thick 2.0mm Stainless Construction

- Improved Heat Rejection Characteristics

- Simple Bolt-On Install


Specifications:

2.0mm Thick 304 Stainless Sheet

- CNC Laser Cut

- CNC Press Break Formed

- Cerakote High-Temp Coated

- Stainless Hardware


Specifications:

2.0mm Thick 304 Stainless Sheet

- CNC Laser Cut

- CNC Press Break Formed

- Cerakote High-Temp Coated

- Stainless Hardware
