Full Brake Cooling Kit - STI (GR/GV)

    538.95 489.95 489.95 USD

    538.95

    This combination does not exist.

    Add to Cart


    Terms and Conditions
    FREE SHIPPING ON ALL DOMESTIC ORDERS OVER $250!

    OVERVIEW

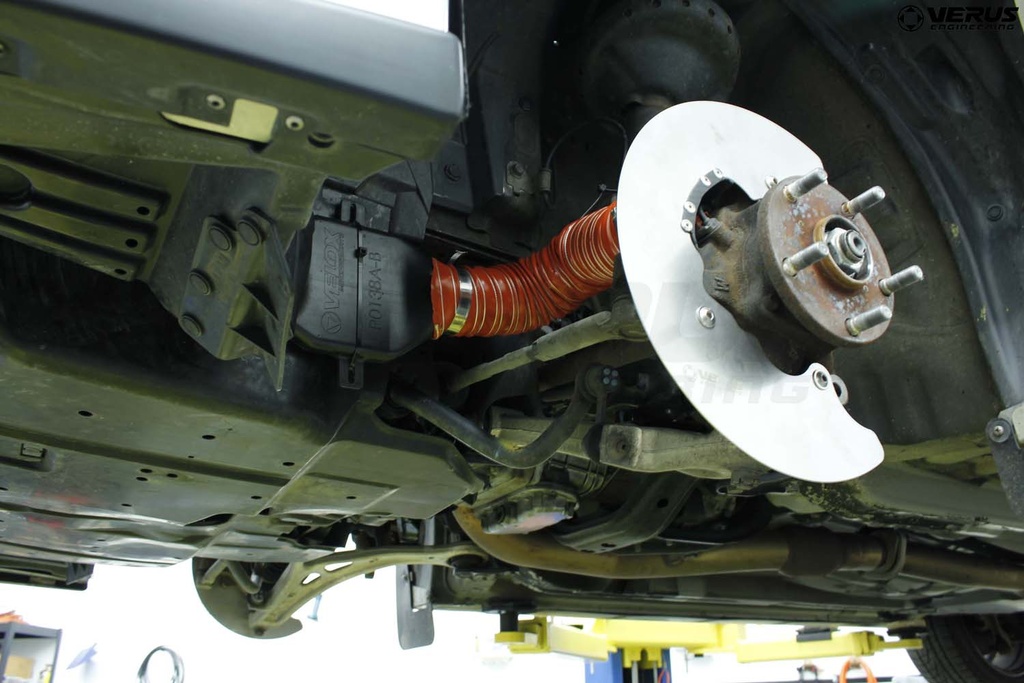

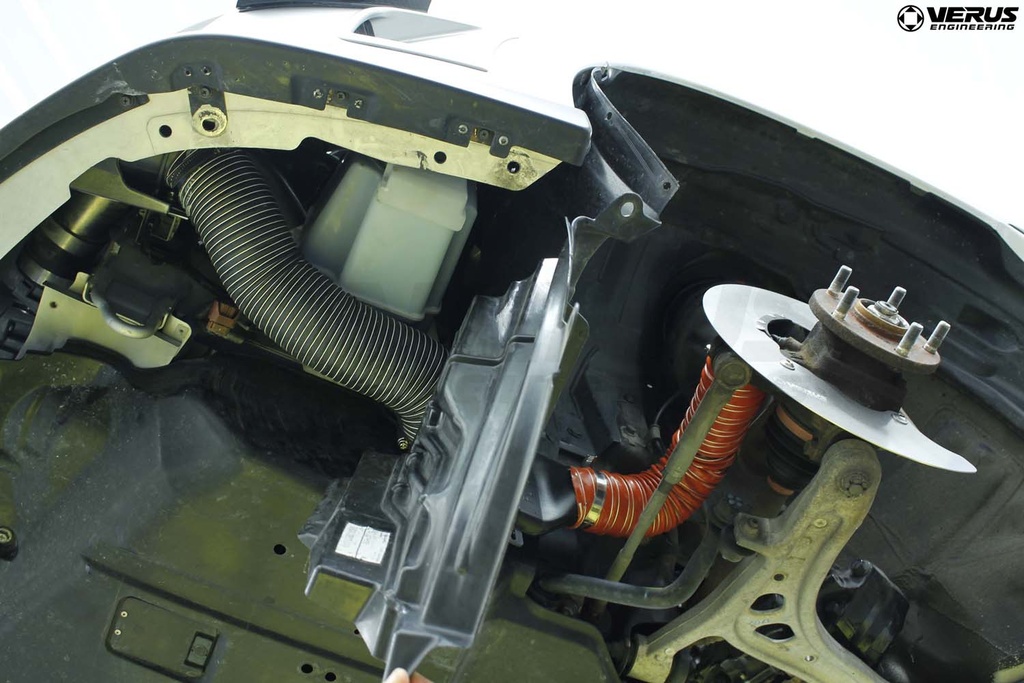

    The Verus Engineering Full Brake Cooling Kit is configured in an OEM style format, with emphasis on the shortest route possible. Using the OEM fog lights as the inlet to the kit and a well-formed duct in the inner fender line this is the brake cooling kit to have. The kit comes with everything necessary for an install, including pre-cut hoses.  The OEM washer fluid reservoir *can be* retained!

    During the design process; we utilized in-house scan data to design the components. This resulted in a product that features a near OEM fit and finish.

    The Verus brake cooling kit was designed for owners looking to maximize their brake's cooling efficiency and increase their brake's ability to do their job.

    For complete compatibility, vehicles without OEM fog light bezels will need to purchase OEM, or similar, Fog Light Bezels.  We purchased OEM units for around $100 for both sides, and they were paint matched.

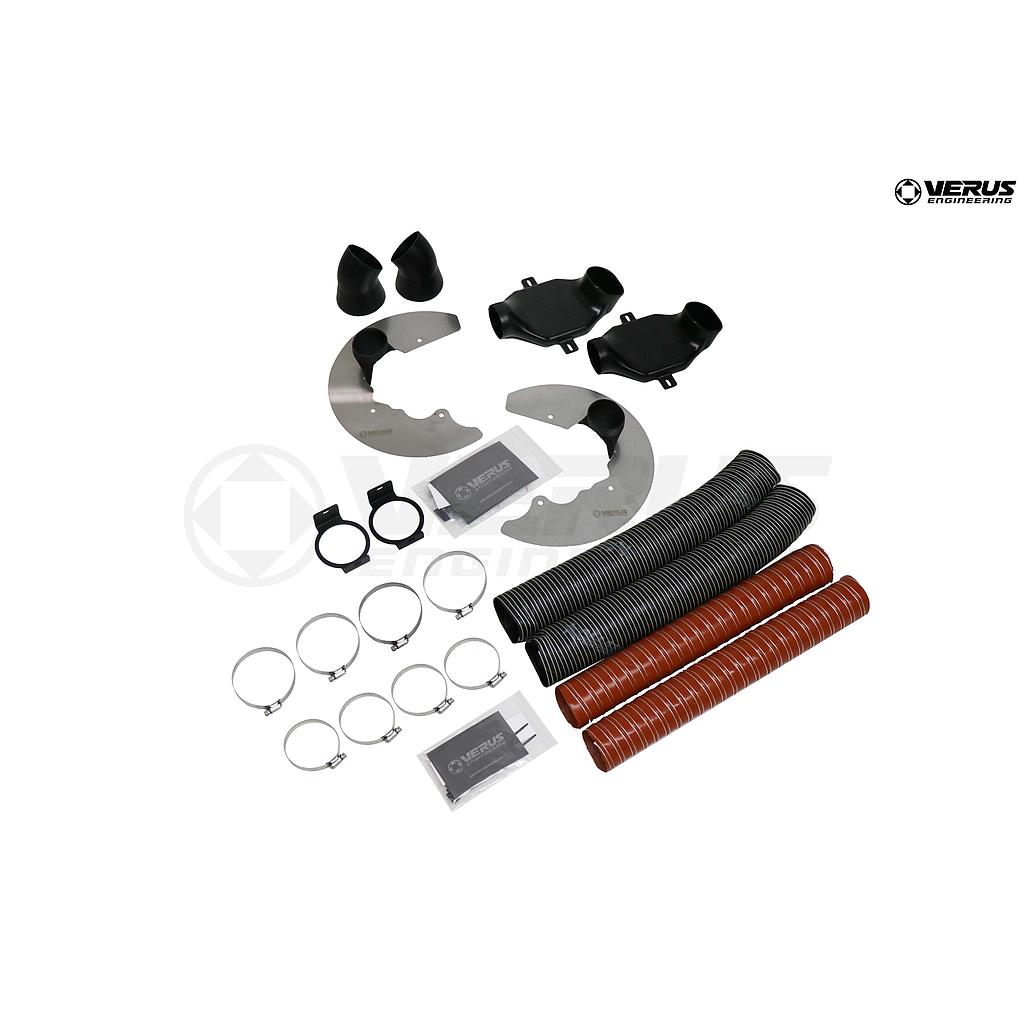

    WHAT IS INCLUDED

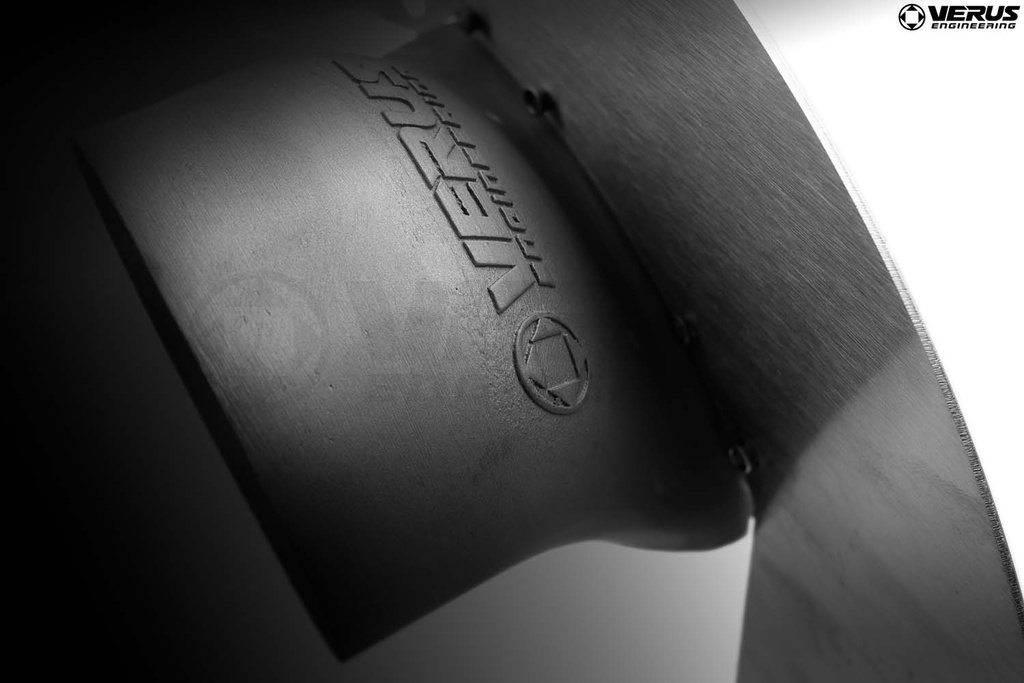

    • Backing Plate Incl. Carbon Ducts Riveted On (2, LH and RH)

    • 2.5" Pre-Cut Silicone High Temp Brake Hose (2)

    • Fender Pancake Duct (2)

    • 3.0" Pre-Cut Neoprene Brake Hose (2)

    • 3.0" Stainless Hose Clamp (4)

    • 2.5" Stainless Hose Clamp (4)

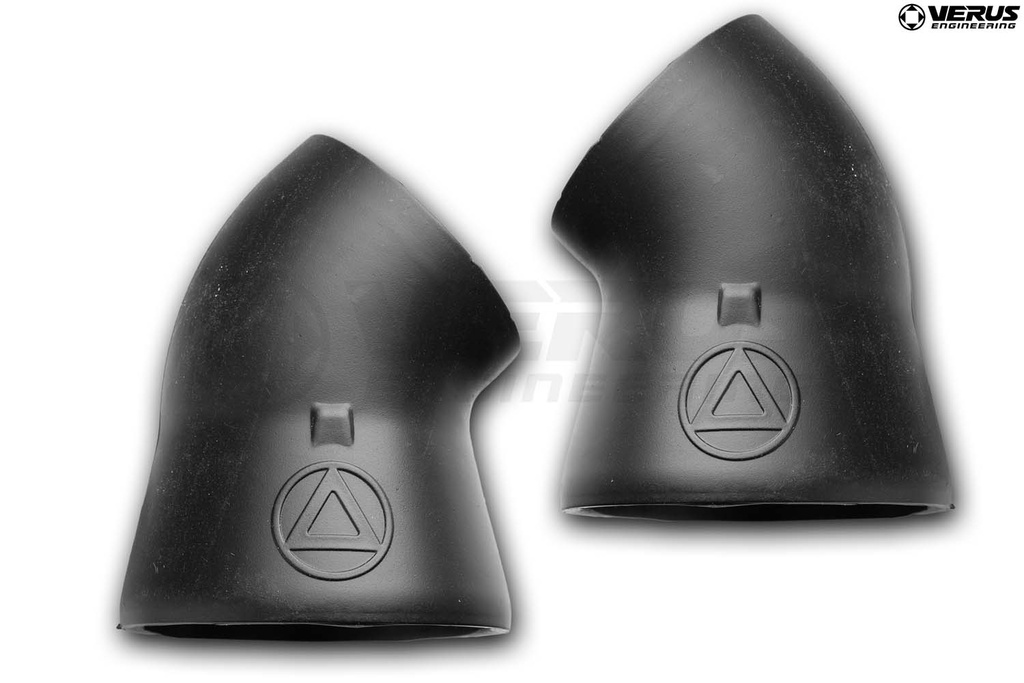

    • Foglight Duct (2)

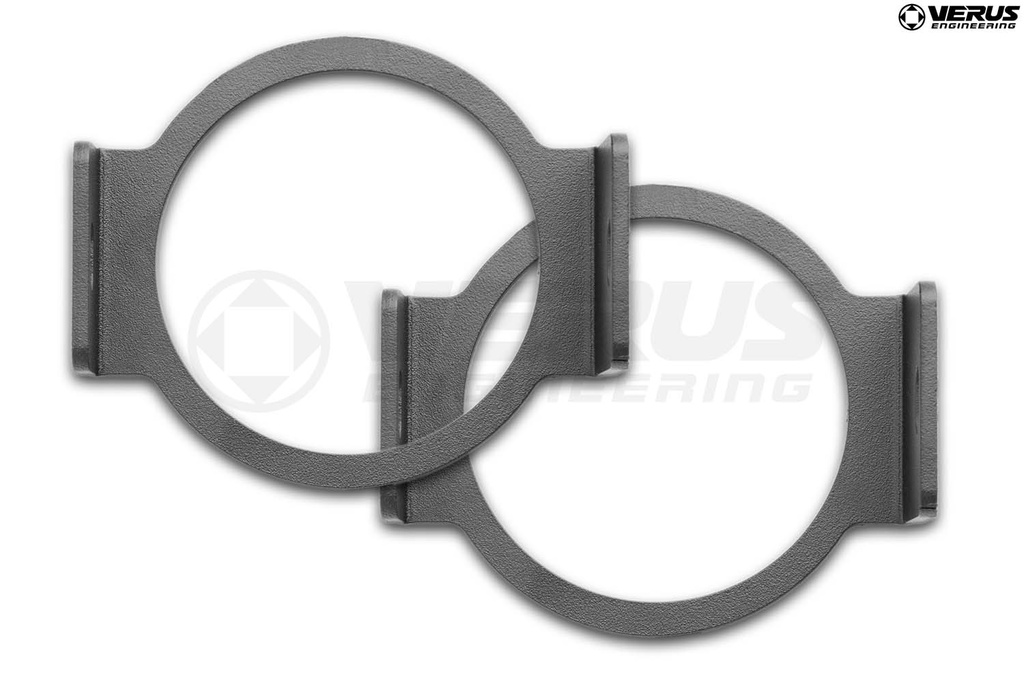

    • Foglight Duct Bracket (2)

    • Hardware Kit, Includes All Necessary Pieces to Install Kit Seamlessly





    FEATURES

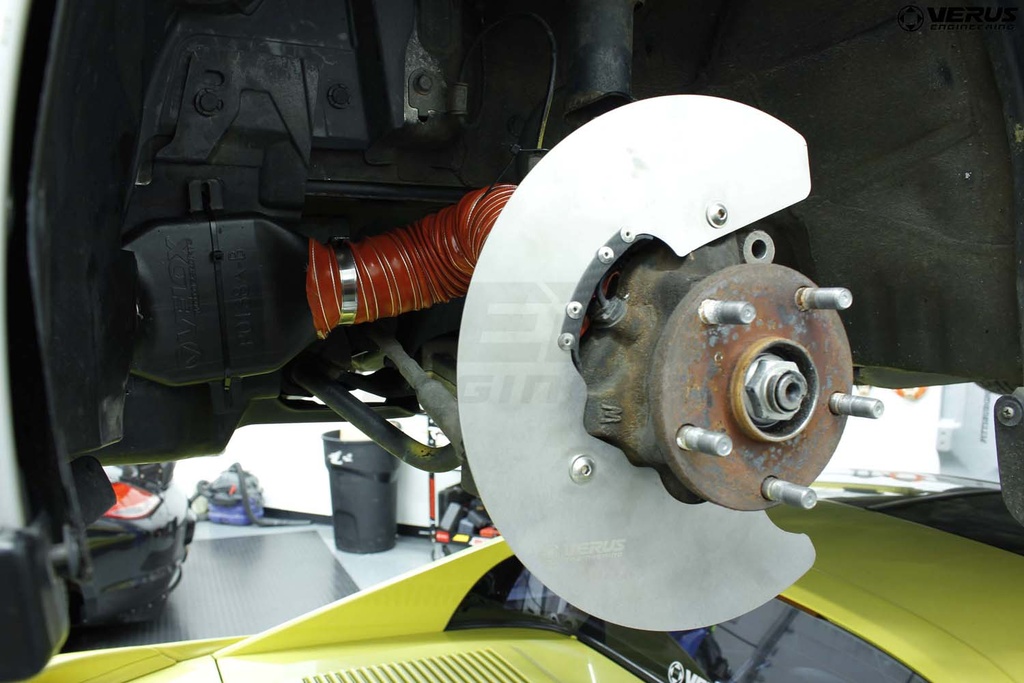

    Direct Air into the Center of the Rotor

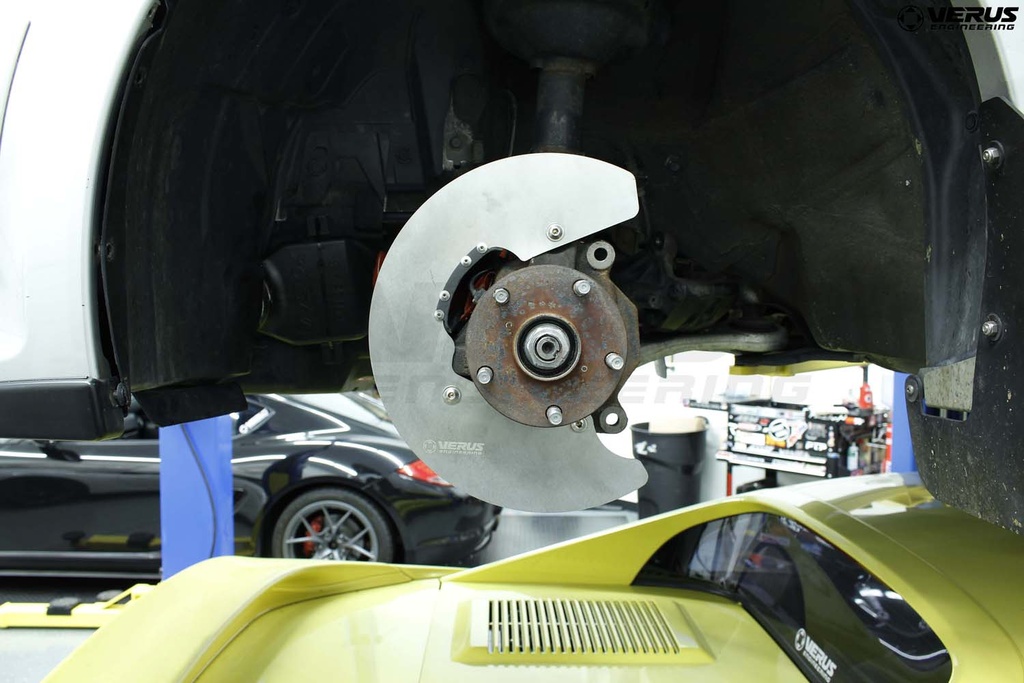

    Stainless Backing Plate Adds Even More Airflow into Center of the Rotor

    OEM Type Install

    Installs in a Few Hours With Minimal Hand Tools and Know-How

    Short Routing to Maximum Cooling Efficiency

    Pulls Air from High-Pressure Zone in Front Bumper



    SPECIFICATIONS

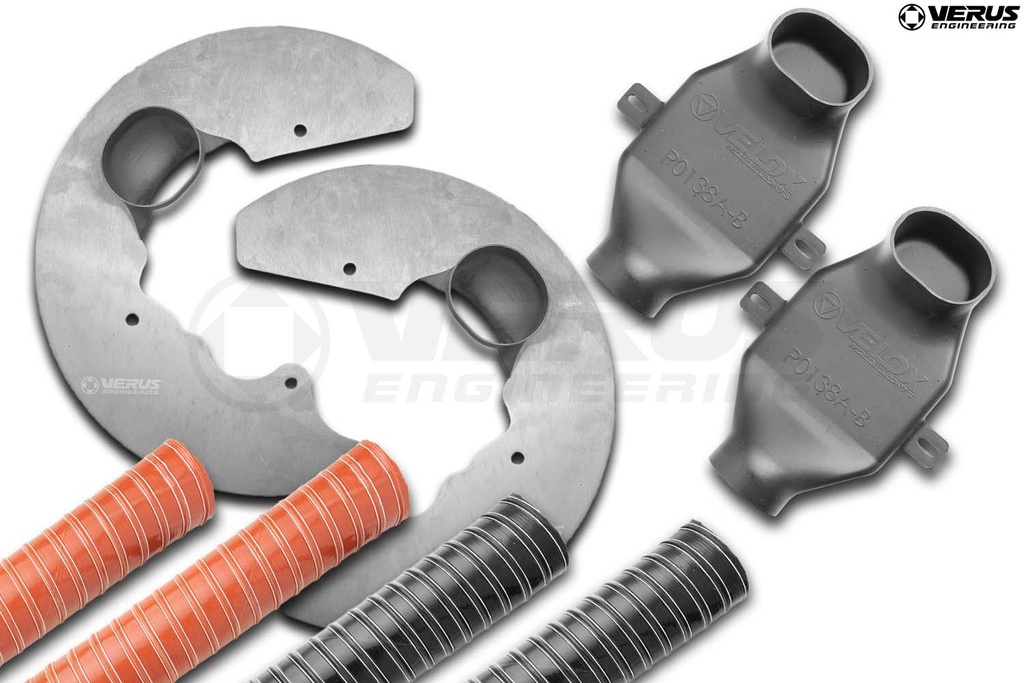

      Stainless Backing Plate

    Dry Carbon Air Duct

    Hard Plastic Fender Ducts (Pancake Duct)

    Hard Plastic Fog Light Ducts

    Pre-cut 3" and 2.5" Brake Duct Hose (Neoprene for Foglight, High Temp Silicone for Backing Plate)

    All Necessary Hardware Included

    Made in the U.S.A.





    SCIENCE

    Via tuft testing and thermal image testing, it is clear that the brake cooling kit is highly effective even when used with the OEM rotors which have quite small vanes when compared to those of big brake kits.  Smaller vanes will hurt flow and cooling due to the reduced size.  With the brake cooling kit, the rotors remained much cooler directly after applying the brakes as well as after a short drive without using the brakes.  It is also apparent that at high rates of speed, the brake cooling kit does significantly more than at lower speeds.  This makes a lot of sense as the kit works by using frontal ambient air and funneling it into the center of the rotor.  At higher speeds, pressure and flow rates are greater than at low speeds.  We have heard reports back from customers tracking their cars having reduced brake fade, reduced rotor cracking, improved pad wear, and reduced brake fluid boiling.  As a result, this is a great kit to help keep brake components at an appropriate temperature during competition and/or track days.





    INSTALL AND D

    ATA




    Install Manual



    Informative Packet
