Forged Clutch Fork -  WRX

https://www.verus-engineering.com/web/image/product.template/1108/image_1920?unique=95e56c3

179.95 179.95000000000002 USD 179.95

179.95

Not Available For Sale

    This combination does not exist.

    OVERVIEW

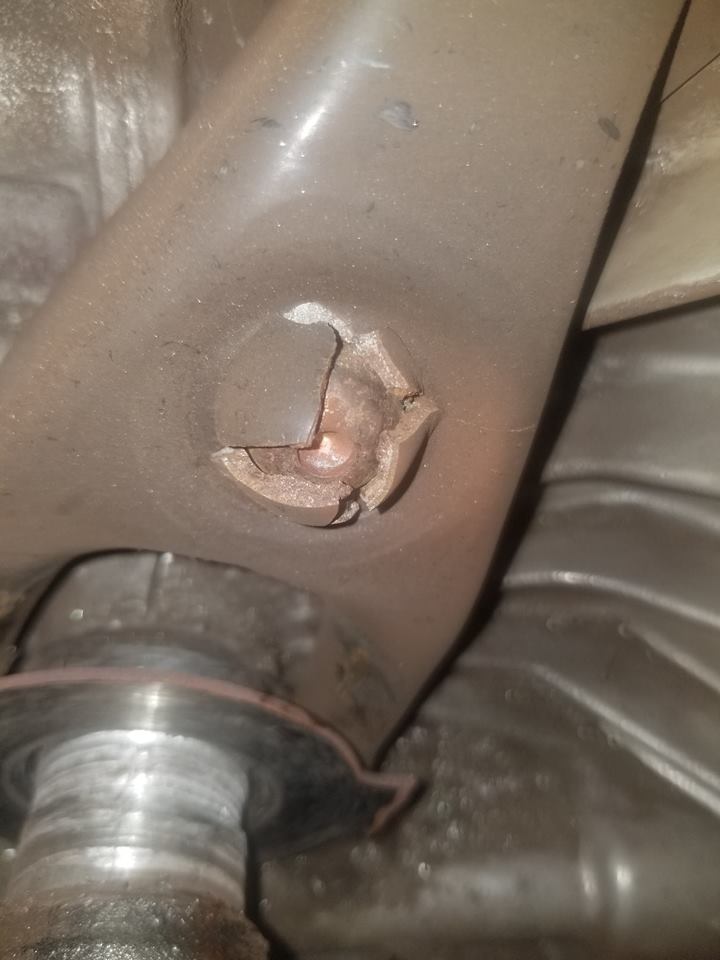

    Out of necessity, we had to develop and improve upon the OEM clutch fork. The OE stamped steel units are prone to cracking, bending, and failing in all conditions, from OEM clutches to heavy-duty dual disks.  We highly recommend installing our clutch fork anytime the transmission and engine are disconnected as it is inexpensive insurance to solve a prevalent issue within the Subaru community.

    Our forged fork was designed utilizing advanced FEA (Finite Element Analysis) to dramatically increase strength, rigidity, and overall longevity. The unit is forged from 4130, heat-treated, and then cryo treated for superior physical properties.

    The clutch fork fits a variety of Subaru makes and models; please refer to our fitment chart at the bottom of this page.

    WHAT IS INCLUDED

    • Forged Clutch Fork
    PART NUMBER

    A0163A

    OE #: 30531AA180

    INSTALL AND DATA


    INSTALL VIDEO

    Features:



    - Increase Strength

    - Increase Rigidity

    - Improve Pedal Feel

    - Increase Longevity of Clutch Fork

    0 OEM Fit and Finish

    - Rated for Use in Applications Exceeding 1000 LBS of Pressure Plate Use


    Specifications:

    - FEA Optimized Design

    - Forged 4130 Chromoly Steel

    - Heat Treated to Hardness of 26-32 HRC

    - Cryo-treated for Improved Physical Properties

    - Black Oxide Coated for Rust Resistance


    Science:

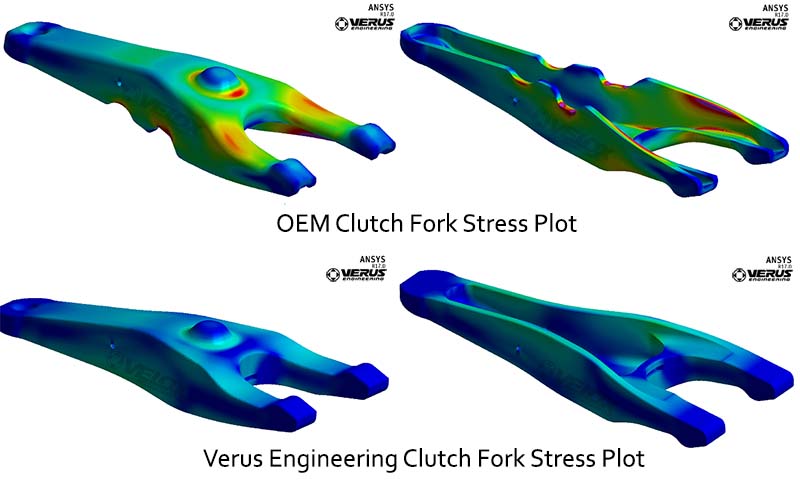

    As shown here, you can see the severe decrease of stress concentrations moving from OEM to a forged unit. All graphs are set the exact same, with yield strength at the limit of the color code (red).  Warmer colors, like red and purple, show areas over yield strength.  The cooler colors, like deep blue, represent areas of low stress.  The Verus Engineering clutch fork has improved again in strength as a result of the forging process when compared to the machined and OE component.  This will ultimately mean a longer and better life out of your driveline components, including your clutch, transmission, and of course your clutch fork.


    FEATURES

    Increase Strength

    Increase Rigidity

    Improve Pedal Feel

    Increase Longevity of Clutch Fork

    OEM Fit and Finish

    Rated for Use in Applications Exceeding 1000 LBS of Pressure Plate Use







    SPECIFICATIONS

     FEA Optimized Design

    Forged 4130 Chromoly Steel

    Heat Treated to Hardness of 26-32 HRC

    Cryo-treated for Improved Physical Properties

    Black Oxide Coated for Rust Resistance









    SCIENCE

    As shown above, you can see the severe decrease of stress concentrations moving from OEM to a forged unit. All graphs are set the exact same, with yield strength at the limit of the color code (red).  Warmer colors, like red and purple, show areas over yield strength.  The cooler colors, like deep blue, represent areas of low stress.  The Verus Engineering clutch fork has improved again in strength as a result of the forging process when compared to the machined and OE component.  This will ultimately mean a longer and better life out of your driveline components, including your clutch, transmission, and of course your clutch fork.

    Compatibility With Other Subaru Models:

    Subaru Baja, B Pick Up and Pick Up

    Subaru Forester XT Sports Model, 2006-2008

    Subaru Impreza, 2.5L Turbo, GT Sedan, WRX Premium Wagon, WRX Sedan, WRX TR Sedan, WRX Wagon, 2006

    Subaru Legacy, 2.5L Turbo, GT Limited Sedan, 2005-2009

    Subaru Legacy, 2.5L Turbo, GT Limited Wagon, 2005-2007

    Subaru Legacy, 2.5L Turbo, GT Wagon, 2005-2006

    Subaru Legacy, 2.5L Turbo, Limited Wagon, 2005-2006

    Subaru Legacy, 2.5L Turbo, GT Premium Sedan, 2010-2011

    Subaru Legacy, 2.5L Turbo Baja-B Pick Up, 2006

    Subaru Outback 2.5L Turbo, XT Limited, 2005-2009

    Subaru WRX, 2.0L Turbo, Base, Limited, Premium, 2015-Present

    Subaru WRX, 2.5L Turbo, S Sedan. 2008, 2011-2014

    Subaru WRX, 2.5L Turbo, S Wagon, 2008

    Subaru WRX, 2.5L Turbo Sedan, 2006-2008, 2011-2014

    Subaru WRX, 2.5L SS Sedan, 2009-2010

    Subaru WRX, 2.5L SS Wagon, 2009-2010

    Subaru WRX, 2.5L TR Sedan, 2006-2007

    Subaru WRX, 2.5L Wagon, 2006-2008, 2011-2014

    Subaru WRX, 2.4L, 2022+
