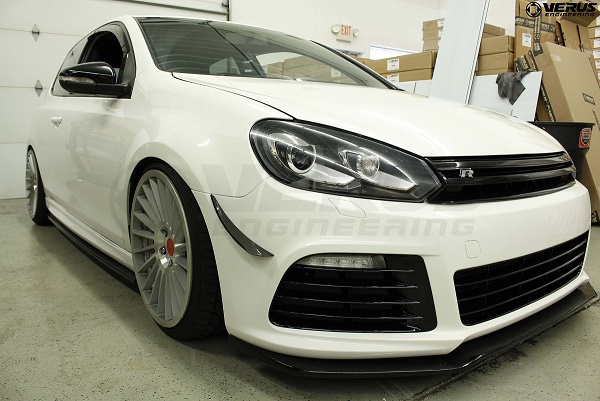

Dive Plane Kit - Mk6 VW Golf

https://verus-engineering.odoo.com/web/image/product.template/1102/image_1920?unique=cb355cb

209.95 209.95000000000002 USD 209.95 ​

209.95 ​

Not Available For Sale

    This combination does not exist.

    OVERVIEW

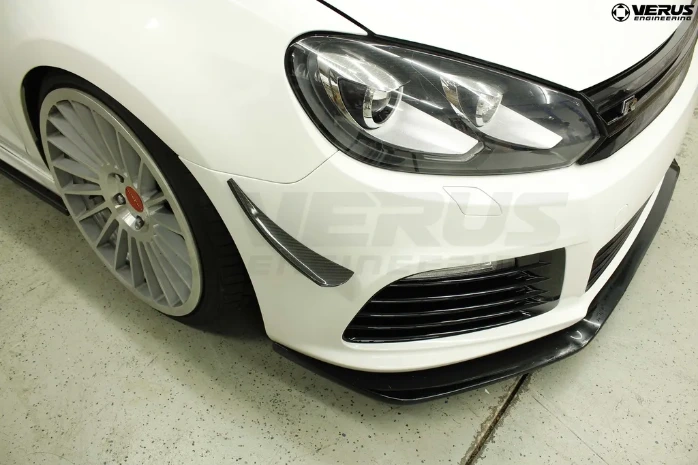

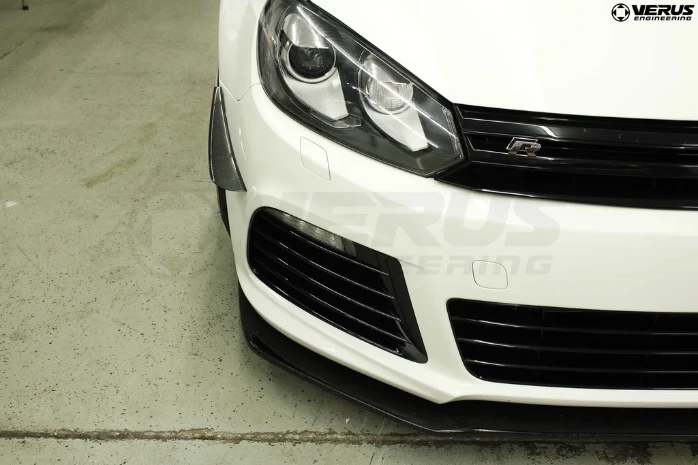

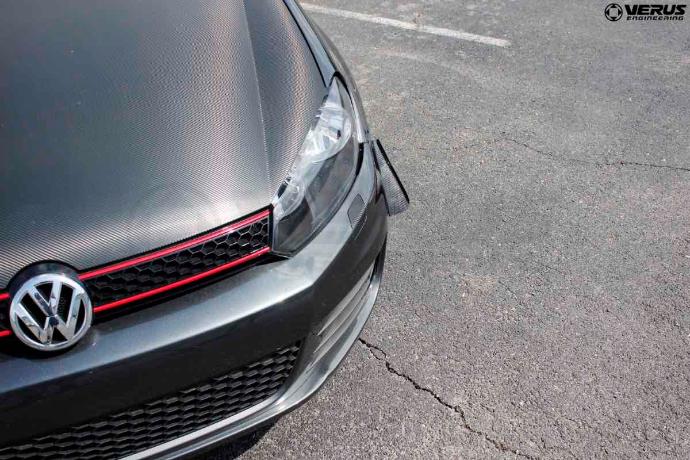

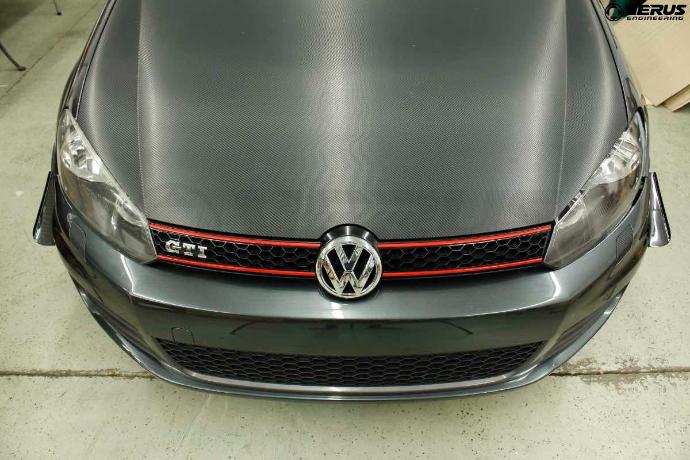

    Our Dive Planes for the Mk6 Golf were specifically designed to add a slight bump in front-end downforce while being drag neutral and is safe to be used with or without our Mk6 Golf rear diffuser.

    Dive planes also referred to as canards, allow you to shift the aero balance forward, aiding you and your setup in balancing out a large rear wing or diffuser.

    Dive planes also help seal the sides of the car and help evacuate air from the wheel well, further reducing lift and drag in some cases.

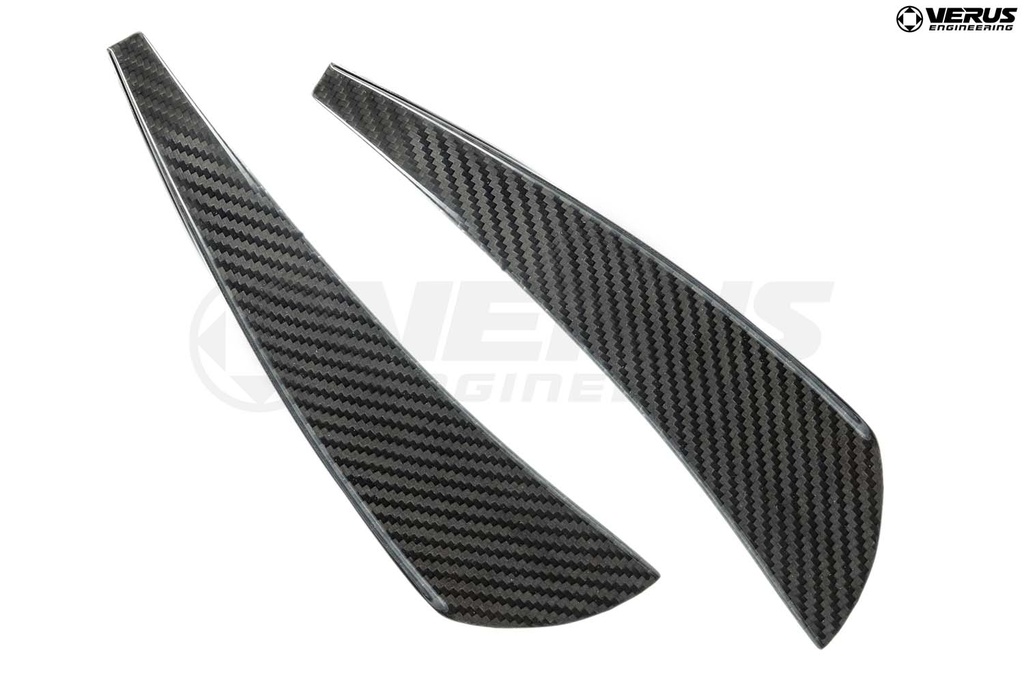

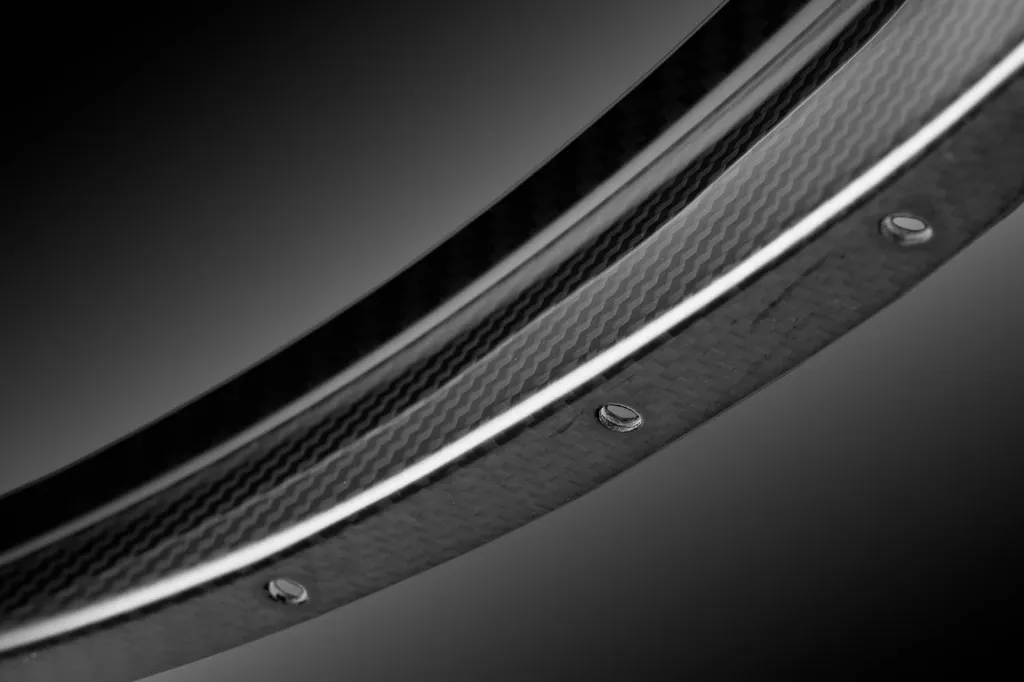

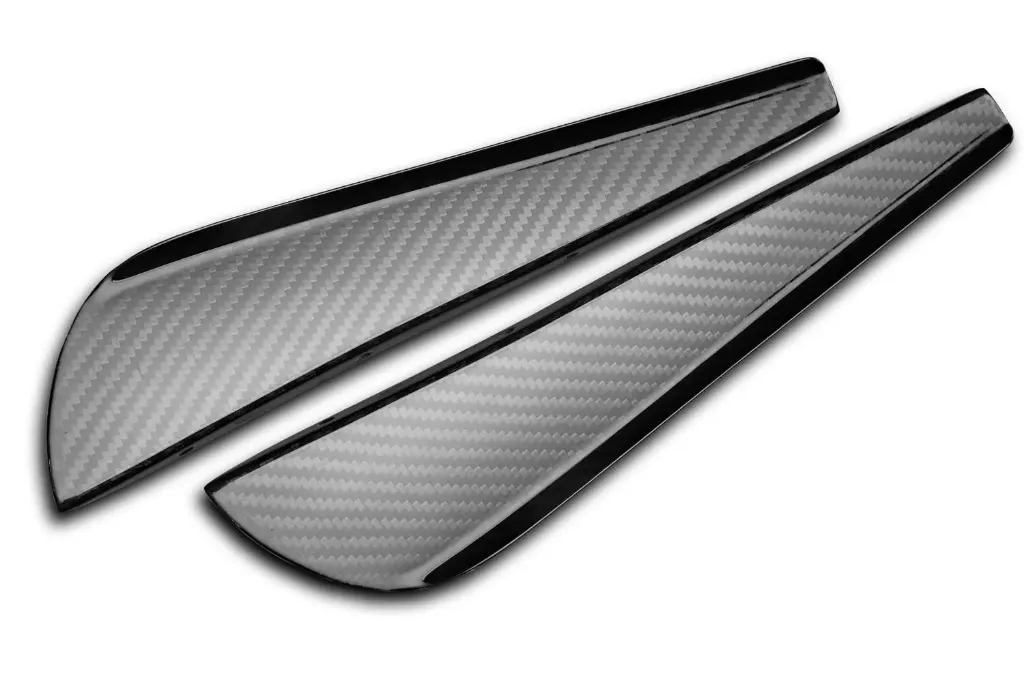

    These units are constructed from pre-preg, autoclaved cured, 2x2 twill carbon, that is polished to a high gloss shine.

    WHAT IS INCLUDED

    • Dive Plane, Left-Hand

    • Dive Plane, Right-Hand

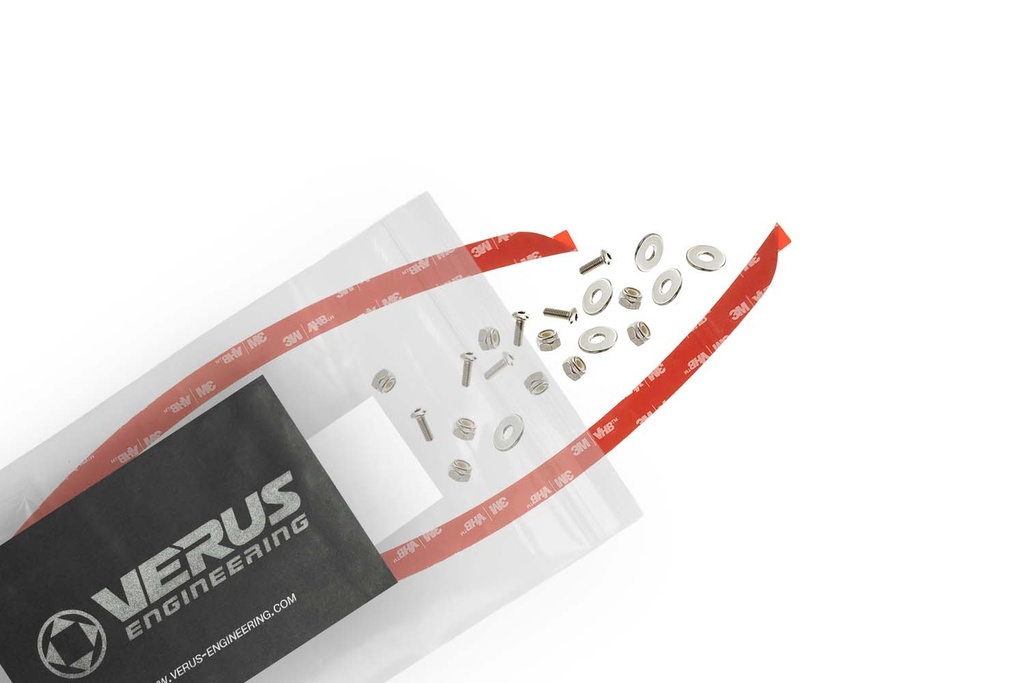

    • 3M VHB Doubled-Sided Tape, Cut to Shape (2)

    • Template (2)

    • Hardware Kit, Includes All Necessary Hardware for Install

    PART NUMBER

    A0147A

    INSTALL AND DATA


    INSTALL MANUAL






    FEATURES

    Reduce Lift (Increase Downforce)

    Shift Aero Balance Forward

    Allows for Fine Tuning of Aero Balancing (Forward Biased)

    Help Seal Sides of Car

    Evacuate Air From the Front of the Wheel Well





    SPECIFICATIONS

    CFD Optimized Design

    Pre-Preg, 2x2 Twill, Autoclave Cured, Carbon Fiber Composition

    3M Double-Sided Tape or Bolt-On Install

    Stainless Hardware Used Throughout

    Install Template Included





    SCIENCE

    Dive planes increase front end grip at high rates of speed and can be used to help balance out diffusers or other rear-end aerodynamic devices. They work by creating high pressure on the top side of the dive plane, and low pressure on the bottom side. Our units were also designed to increase front wheel well evacuation which reduces lift in this area, further increasing downforce generated.

    The goal of the diffuser and dive planes were to work as a package for the Golf to improve aerodynamic performance over the factory. The package is designed for the enthusiast who frequents track days and wants an effective aerodynamic package that balances the car at speed. Both components were designed to work together as a package.
